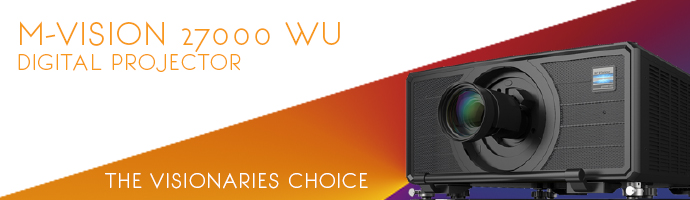

M-Vision 27000 WU (Preliminary)

27,000 ISO / 24,000 ANSI Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) | Part Number: 123-541


Key Specifications:

Colour System: Blue + Red Laser illumination
Display Type: 1 x 0.96" DarkChip 3™ DMD™
DMD Specification: 1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio: 16x10
Fill Factor 87%
Key Features:
ColorBoost+Red Laser
  • Uses red laser diodes for increased colour fidelity and highly accurate colours
Video & Graphics Processing
  • HDMI 2.0 compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats.
  • DisplayPort 1.2 with HDCP 2.2 compliance.
  • 10-bit colour processing (30-bits per pixel).
  • Support for 1080p 24Hz native display.
  • Support for 4K 4096 x 2160 resolution.
  • HDR support
  • Input source automatically detected.
  • Input redundancy mode with auto switching.
  • Dual Pipe Processing: Two sources in parallel for Left and Right eyes.
  • Syncronisation of active 3D glasses or polarising switcher.
  • DICOM simulation mode.
  • Sealed light engine
Geometry Correction
  • Vertical & Horizontal Keystone correction.
  • Four Corner adjustment.
  • Rotation.
  • Pin/Barrel.
  • Wall Corner adjustment.
  • Centre Shift (Horizontal and Vertical linearity adjustment).
  • Custom Warp.
  • Upload of maps for warp, blend, uniformity and masking.
  • Selectable aspect ratios: 5:4 / 4:3 / 16:10 /16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled.
  • Digital Zoom.
  • Blanking control for custom input window sizing.
Edge Blending
  • Correction for non-active pixels at the edge of the display.
HDBaseT® Interface
  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows the projector to be placed up to 100m from source with low cost cabling.
  • HDBaseT® Includes Ethernet 100BaseT and RS232/IR control.
Colour Processing
  • Powerful seven-point colour correction for accurate colour matching.
Projector Controller Software
  • Intuitive user interface for network control.
  • Simultaneous control of user-defined groups of projectors.
  • At-a-glance monitoring of projector status.
Projector Automation
  • Real-time clock provides daily on/off automation.
Installation
  • 4 x eye bolts included for easy rigging.
  • 4 x top stacking mounts and mount securing pins
  • IP6X sealed optics.
Source Compatibility 12G-SDI single link - SMPTE 292M (HD), SMPTE 424M (3G), SMPTE 2081 (6G), SMPTE 2082 (12G).
Inputs/Outputs
Video & Computer
Type Connector Qty
DisplayPort 1.2
HDMI 2.0
HDBaseT
12G-SDI In
12G-SDI Out (loopthrough)
DisplayPort
HDMI
RJ45
BNC
BNC
2
2
1
1
1
.
Communication & Control
Type Connector Qty
3D Sync In
3D Sync Out
3D Sync IR
Ethernet / Art-Net
HDBaseT/Ethernet/RS232/IR
Serial In RS-232C
Wired Remote In
Wired Remote Out
12V Trigger
USB Power out 5V/2A
BNC
BNC
BNC
EtherCON RJ45
RJ45
9-pin D-Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
3.5mm Stereo Jack
USB Type A
1
1
1
1
1
1
1
1
1
1
3D Formats Supported Frame Packing
Dual Pipe
Frame Sequential
Side By Side (half)
Top and Bottom

Compatible with polarised 3D glasses
HDTV Formats Supported EDTV (480p, 576p,) HDTV (720p, 1080i, 1080p, UHD, DCI 4K), Display Support for 4K-UHD 3840 x 2160 60HZ and up to 4096 x2160 60Hz.
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, WUXGA, Support for WQXGA
Bandwidth 18Gb/s (600MHz clock rate) on HDMI
Remote Control Addressable IR Remote Control, wireless and wired
On-Board keypad
Automation Control LAN
RS-232
Alert E-Mails from Projector
Served webpage OSD functions for full Projector Control via web browser
LAN Control-Crestron Roomview™
LAN Control-Crestron eControl
LAN Control-PJ Link compatible
LAN Control-AMX SSDP
LAN to RS232 (RS232 by Telnet)
Concurrence Control for RS232/LAN
DMX Art-Net control
Scheduled On and Off times
Colour Temperature User selectable: 3200K/ 5400K / 6500K / 7500K / 9300K / Native
Operation
illumination Type MCL Blue Laser Light Source and MCL Red Laser Light Source with Custom light output setting range: 30% - 100%
Constant Brightness mode
Typical illumination Life 20,000 hours
Lenses
Lens Part No. Optimised Focus Range* Lens Shift (Frame)
0.38:1 fixed 123-417 1.6m - 5m Vert: 0.50 (U) 0.50 (D) frame, Hor: 0.025 (L) 0.025 (R) frame
0.9 - 1.2 : 1 zoom 120-624 0.92m - 10.6m Vert: 0.45 (U) 0.45 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
1.20 - 1.56 : 1 zoom 120-625 0.95m - 17.47m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
1.50 - 2.00 : 1 zoom 120-626 1.24m - 16.4m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
2.00 - 4.00 : 1 zoom 120-627 1.82m - 41.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
4.00 - 7.00 : 1 zoom 120-628 4.38m - 74.5m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
6.9 - 10.3 : 1 zoom 123-418 12m - 80m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount Motorised Shift, Zoom and Focus. Intelligent Lens Memory with 10 user-definable pre-set positions.
Mechanical Mounting Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Orientation Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes
Power Requirements 200 240VAC 50/60Hz single phase 10.6A
110 - 130VAC 50/60Hz single phase 11.1A
At 120V the projector will be in a reduced brightness mode
Power Consumption Typical 1550W @ 220VAC in Normal Mode
Typical 850W @ 110VAC in Normal mode
Thermal Dissipation Typical 5289 BTU/Hour @ 220VAC in Normal mode
Typical 2900 BTU/Hour @ 110VAC in Normal mode
Fan Noise Normal mode: 50 dBA max, 48 dBA typical
Eco mode: 48 dBA max, 46dBA typical
Operating/Storage Temperature Operating: Operating: 0 to 40 °C (32 to 104 °F)
Operating: 33 - 35 °C (91.4 - 95 °F) Projector automatically set to 90% laser power mode
Operating: 35 - 40 °C (95 - 104 °F) Projector automatically set to eco mode
Storage: -20 to 60 °C (-4 to 140 °F)
Operating Humidity 90% (with maximum temperature of 35 °C) non-condensing
Weight 47.2 kg / 104.1 lbs
Dimensions Projector Dimensions (Including handles and feet)
L: 768.4mm x W: 598.8mm x H: 302.75mm
L: 30.25 inch x W: 23.57 inch x H: 11.92 inch
Projector Dimensions (Excluding handles)
L: 669.4mm x W: 598.8mm x H: 302.75mm
L: 26.35 inch x W: 23.57 inch x H: 11.92 inch
Carton Dimensions
944mm x W: 758mm x H: 516mm
L: 37.17 inch x W: 29.84 inch x H: 20.31 inch
Safety & EMC Regulations cTUVus, CB, CCC (China), FCC Class A (USA), FDA, CE (European Economic Area), UKCA, KC (Korea), BSMI (Taiwan), IEC EN 60825-1:2007 Class 3R Laser Product, IEC EN 60825-1:2014 Class 3R Laser Product, GB 7247.1-2012
Accessories
Accessory Part No.

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
