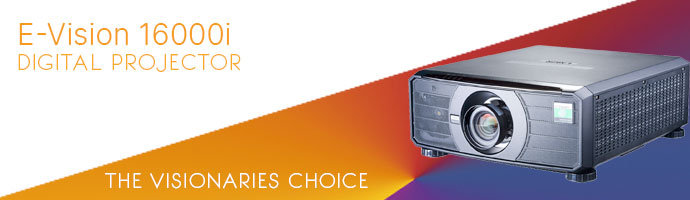

E-Vision 16000i WU (Preliminary)

16,000 ISO / 14,500 ANSI Lumens | Contrast Ratio: 20,000:1 (Dynamic Black) | Part Number: 123-523

Key Specifications:

Colour System:

Laser Phosphor with Colorboost (Red Laser).
Phosphor wheel: 2 x 7200rpm (120Hz)
Colour wheel: 4 Segment RGBY 2 x 7200rpm (120Hz)

Display Type:

1 x 0.8" HEP DMD™ (High Efficency Pixel)

DMD Specification:

1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast.

Aspect Ratio:

16x10

Fill Factor

Key Features:

Video & Graphics Processing

Nexus electronics platform
HDMI 2.0
DisplayPort 1.2
10-bit colour processing (30-bits per pixel) 1,073,741,824 colours
Hue, Saturation and Gain colour management.
24p and 1080p native display.
HDR support
Input source automaticaly detected
Selectable Dynamic Black
Syncronisation of active glasses or polarising switcher.
DICOM simulation mode
Optics engine sealed to IP6X

Geometry Correction

Vertical & Horizontal Keystone correction
Four Corner adjustment
Rotation -100 to +100 with +/- 0.25° per step
Selectable aspect ratios: 5:4 / 4:3 / 16:10 /16:9 / 1.88 / 2.35 / TheaterScope / Source / Unscaled
Digital Zoom 0% ~ 100%
Blanking control for custom input window sizing.
Scaling for fixed aspect ratio screens.16:10 / 16:9 / 4:3 / 2.35:1
Custom warp

Edge Blending

Correction for non-active pixels at the edge of the display.

HDBaseT® Interface

Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
Allows the projector to be placed up to 100m from the source with low cost cabling.
HDBaseT® Includes Ethernet 100BaseT and RS232/IR control.

Colour Processing

Powerful seven point colour correction for accurate colour matching.

Projector LAN Control

Free Digital Projection Projector Controller II software
Intuitive user interface for network control.
At-a-glance monitoring of projector status.
Simultaneous control of user-defined groups of projectors.

Source Compatibility

3G-SDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.

Graphics standards up to WQXGA 2560 x 1600 60 Hz RB (DisplayPort)

Video standards up to HDTV 1080p - 60Hz, with support for 4K-UHD (3840 x 2160) 60Hz

Display Support for 3840 x 2160 (4K-UHD) up to 60Hz and 4096 x 2160 (4K) up to 60Hz

Inputs/Outputs

Video & Computer
Type	Connector	Qty
HDMI 2.0 (HDCP compatible) DisplayPort 1.2 HDBaseT 3G-SDI in 3G-SDI out	HDMI DisplayPort 8P8C "RJ45" BNC BNC	2 2 1 1 1

Communication & Control
Type	Connector	Qty
3D Sync In 3D Sync Out (loop through) 3D Sync Out for IR LAN / Art-Net HDBaseT/Ethernet/RS232/IR Serial In RS-232C Serial Out RS-232C Wired Remote In Wired Remote Out 12V Trigger 12V 350mA USB Power out 5V/2A	BNC BNC BNC EtherCON RJ45 RJ45 9-pin D-Sub 9-pin D-Sub 3.5mm Stereo Jack 3.5mm Stereo Jack 3.5mm Stereo Jack USB Type A	1 1 1 1 1 1 1 1 1 1 1

3D Formats Supported

Off
Auto
Side by Side
Top and Bottom
Dual Pipe
Frame Sequential

HDTV Formats Supported

SDTV (480i, 576i), EDTV (480p, 576p), HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N), SECAM (B,D,G,K,K1,L) Display Support for 2K 2048 x 1080 up to 60Hz and 4K-UHD 3840 x 2160 up to 60Hz

Computer Compatibility

VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA up to 120hz RB, Mac

Bandwidth

Remote Control

Infrared Remote Control Unit

Automation Control

LAN - Webpage control
TCP/UDP control
RS-232
Alert Mail for Projector
LAN Control-Crestron® Connected
LAN Control-PJ Link Class 1 compatible
LAN Control-AMX® Device Discovery
Art-Net (DMX) control

Colour Temperature

User selectable (3200K/ 5400K / 6500K / 7500K / 9300K / Native )

Operation

illumination Type

Laser Phosphor. ECO mode support (80% Brightness)

Typical illumination Life

20,000 hours

Lenses

Lens	Part No.	Optimised Focus Range*	Lens Shift (Frame)
0.31 - 0.33:1 zoom	124-318	0.38 - 3.01m	Vert: +/- 50% Hor: +/- 20%
0.55 - 0.75:1 zoom	124-319	0.69 - 6.58m	Vert: +/- 50% Hor: +/- 20%
0.74 - 1.08:1 zoom	124-320	0.75 - 12.19m	Vert: +/- 50% Hor: +/- 20%
1.05 - 1.41:1 zoom	124-321	1.06 - 18.94m	Vert: +/- 60% Hor: +/- 20%
1.4 - 2.11:1 zoom	124-322	1.47 - 27.86m	Vert: +/- 60% Hor: +/- 20%
2.1 - 4.0:1 zoom	124-323	2.24 - 54.19m	Vert: +/- 60% Hor: +/- 20%
3.0 - 4.52:1 zoom	112-503	2.53 - 47.2m	Vert: +/- 45% Hor: +/- 10%
4.46-6.94:1 zoom	112-504	3.71 - 76.7m	Vert: +/- 45% Hor: +/- 10%

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount

Centred lens for installation flexability
Motorised and programmable shift, zoom and focus.
Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).

Mechanical Mounting

Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Ceiling Mount compatible chassis with 6 off M4*0.7 mounting holes available, Maximum screw length 16mm

Orientation

Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes

Power Requirements

100-240VAC 50/60Hz single phase 6.8A

Power Consumption

900W (Max)

Thermal Dissipation

At 100VAC - Typical 3276 BTU/hr, Max 3604 BTU/hr in Normal mode
At 100VAC - Typical 2595 BTU/hr, Max 2853 BTU/hr in Eco mode
At 100VAC - Typical 2662 BTU/hr, Max 2928 BTU/hr in High Altitude Mode
At 220VAC - Typical 3174 BTU/hr, Max 3492 BTU/hr in Normal mode
At 220VAC - Typical 2491 BTU/hr, Max 2740 BTU/hr in Eco mode
At 220VAC - Typical 2560 BTU/hr, Max 2816 BTU/hr in High Altitude Mode

Fan Noise

Normal mode: 39 dBA typical, Max 41 dBA
Eco Mode: 36 dBA typique / Max 38 dBA

Operating/Storage Temperature Operating:

Operating: 0 to 40 °C (32 to 104 °F)
Force ECO over 35°C (95°°F)

Operating Humidity

90% (with maximum temperature of 35°C (95°F)

Weight

29.4 kg / 64.8 lbs

Dimensions

L: 598mm x W: 500mm x H:218mm
L: 23.54 inch x W: 19.68 inch x H: 8.58 inch

Safety & EMC Regulations

cTUVus, CB report, CCC (China), CECP (China Energy Conservation Program), China RoHS, FCC part 15 Class A, FDA 21 CFR part 1040 (Except with respect to those characteristics authorised by Variance Number 2021-V-0192, CE (European Economic Area), UKCA (United Kingdom), KC (Korea), BSMI (Taiwan), RCM (Australia),IEC 60825-1 : 2014 - Class 1 Laser Product, IEC EN 62471-5:2015 - Risk Group 2< br/>
This projector may become Risk Group 3 when an interchangeable lens with a throw ratio of greater than 1.94:1 is installed
Such combinations of projector and lens are intended for professional use only and are not intended for consumer use.
