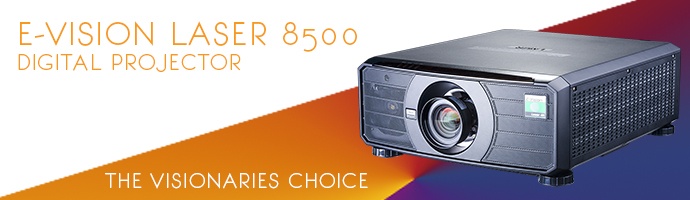

E-Vision Laser 8500 WUXGA Black

8,500 Lumens | Contrast Ratio: 10,000:1 (Dynamic Black)1,800:1 native | Part Number: 120-953


Key Specifications:

Colour System: Laser Phosphor
Display Type: 1 x 0.67" DarkChip™ DMD™
DMD Specification: 1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio: 16x10
Fill Factor 87%
Key Features:
Video & Graphics Processing
  • HDMI 1.4 for Side by Side, Frame Packing & Top Bottom 3D Formats.
  • Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources
  • Dual Pipe Processing: Two sources in parallel for Left and Right Eyes.
  • Synchronisation of active glasses.
  • 3GSDI with loop-through.
  • 24p and 1080p native display.
  • DICOM Simulation Mode.

Geometry Correction
  • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
  • Blanking control for custom input window sizing.
  • Scaling for fixed aspect ratio screens.
Edge Blending
  • Correction for non-active pixels at the edge of the display.
Picture in Picture
  • Two sources can be displayed either one within the other (PIP), or side by side, with original aspect ratios maintained.
HDBaseT® Interface
  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows projector to be placed up to 100m from source with low cost cabling.
Colour Processing
  • Powerful seven point colour correction for accurate colour matching.
Projector Controller Software
  • Intuitive user interface for network control
  • Simultaneous control of user-defined groups of projectors
  • At-a-glance monitoring of projector status
Projector Automation
  • Real-time clock provides daily on/off automation.
Source Compatibility 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
HDMI including Deep Color™ processing.
Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DisplayPort or VGA.
Component Video (SD and HD) via RGBHV.
Inputs/Outputs
Video & Computer
Type Connector Qty
DisplayPort 1.1a
HDMI 1.4
3G-SDI in
3G-SDI out
VGA / Analog RGB
Component Video
HDBaseT
DVI-D with HDCP
DisplayPort
HDMI
BNC
BNC
15-pin D-Sub
5 x BNC
LAN
DVI
1
2
1
1
1
1
1
1
.
Communication & Control
Type Connector Qty
3D Sync Out
3D Sync In
LAN
RS232
Wired Remote
12V Trigger
Service Port
BNC
BNC
RJ45
9-pin D Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
USB Type A
1
1
1
1
1
2
1
3D Formats Supported Frame Packing
Dual Pipe
Frame Sequential
Side By Side (half)
Top and Bottom
HDTV Formats Supported 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz),1080i (50Hz, 60Hz), 720p (50, 60Hz)
Computer Compatibility Up to 1920 x 1200
Bandwidth 165 MHz on analog RGB
165 Megapixels per second on HDMI
Remote Control Addressable IR remote control, wireless and wired.
On-Board keypad
Automation Control Crestron RoomView® Connected
PJLink
LAN
RS232
AMX (Device Discovery)
Colour Temperature User selectable from 5000 to 9300K
Operation
illumination Type Laser Light Source
Typical illumination Life 20,000 hours
Lenses
Lens Part No. Optimised Focus Range* Lens Shift (Frame)
0.38 :1 fixed 117-341 0.68m - 2.44m Depends on image size, see Installation Guide.
0.75 - 0.93 :1 zoom 115-339 1.02m - 12.7m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
0.76 :1 fixed 112-499 0.81m - 5.08m none
1.25 - 1.79 :1 zoom 112-500 1.33m - 11.73m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.73 - 2.27 :1 zoom 112-501 1.83m - 14.9m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
2.22 - 3.67 :1 zoom 112-502 2.36m - 24.2m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
3.58 - 5.38 :1 zoom 112-503 3.8m - 35.35m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
5.31 - 8.26 :1 zoom 112-504 5.59m - 54.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount Motorised and programmable shift, zoom and focus.
Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).
Mechanical Mounting Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Orientation Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes
Power Requirements 100-240VAC 50/60Hz single phase
Power Consumption 880 (920 @100 Vac)
Thermal Dissipation 3000 (3137 @100 Vac)
Fan Noise 40 dBA
Operating/Storage Temperature Operating: Operating: 0 to 40C (32 to 104F)
Storage: -20 to 60C (-4 to 140F)
Operating Humidity 10 to 90% non-condensing
Weight 28 kg / 62 lbs
Dimensions L: 59.83 cm x W: 50 cm x H: 21.85 cm
L: 23.55 in x W: 19.68 in x H: 8.60 in
Safety & EMC Regulations CE, FCC Class A, UL, CCC
Accessories
Accessory Part No.
Infrared Remote (replacement)
117-780

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
