Specification Sheet

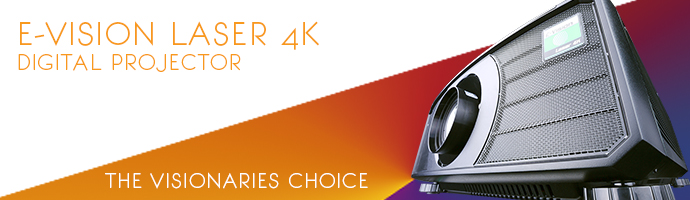

E-Vision Laser 4K-UHD Black

7,000 ANSI / 7,500 ISO Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) 1,000:1 native | Part Number: 120-608

7,000 ANSI / 7,500 ISO Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) 1,000:1 native | Part Number: 120-608

Colour System: DMD Specification:
Laser Phosphor with colourwheel

Display Type:
1 x 0.67" WQXGA+ TRP UHD DMD™
Display resolutions 4K-UHD (3840 x 2160)
or WQXGA+ (2716 x 1528)
8.3 megapixels on screen at 4K-UHD
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:
16:9
Fill Factor
Not applicable: Smooth Picture DMD™

Key Features

Video & Graphics Processing

  • HDR processing

  • Two projectors in one - 4K-UHD and WQXGA+.

  • DisplayPort 1.2.

  • 2 x HDMI 2.0.

  • 2 x HDMI 1.4b for Dual Pipe processing and Frame Sequential 3D format.

  • Sequential Processing: 3D via single HDMI 1.4b input.

  • Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs.

  • Synchronisation of active glasses.

  • 3G-SDI with loop-through.

  • DICOM simulation mode.




Geometry Correction

  • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.

  • Non-linear warp.

  • Digital zoom, pan and scan.

  • Blanking control for custom input window sizing.

  • Scaling available for fixed aspect ratio screens.

  • Unscaled processing for pixel mapped display.


Edge Blending

  • Blending control available for all sides with width control.

  • Correction for non-active pixels at the edge of the display.


Picture in Picture

  • Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained.


HDBaseT® Interface

  • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.

  • Allows projector to be placed up to 100m from source with low cost cabling.

  • Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4


Colour Processing

  • Four colour modes available.

  • Powerful seven point colour correction for accurate colour matching with presets.

  • Easy colour temperature selection.

  • Manual seven point colour adjustment.

  • Traditional lifts and gains.


Projector Controller Software

  • Intuitive user interface for network control.

  • Simultaneous control of user-defined groups of projectors.

  • At-a-glance monitoring of projector status.


Projector Automation

  • Real-time clock provides daily on/off automation.

  • E-mail alerts for system status.
    Source Compatibility:
    2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs.
    3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs.
    3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
    WQXGA+ mode
    2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+.
    3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+.
    4K-UHD mode
    2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD.
    Auto mode
    Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD.
    Sources up to WQXGA+ will be displayed scaled to fit WQXGA+.

    Inputs/Outputs

     Video & Computer

    Type

    Connector

    Qty
    DisplayPort 1.2 (2D)
    HDMI 1.4b (3D)
    HDMI 2.0 (2D)
    3G-SDI in (2D)
    3G-SDI out
    HDBaseT (see LAN) (2D)    		 DisplayPort
    HDMI
    HDMI
    BNC
    BNC
    RJ45    		 1
    2
    2
    1
    1
    1
     Communication & Control

    Type

    Connector

    Qty
    3D Sync Out
    3D Sync In
    LAN
    RS232
    Wired Remote
    12V Trigger
    3D Sync IR Out

    NOTE: One of the LAN ports is shared with HDBase-T.    		 BNC
    BNC
    RJ45
    9-pin D Sub
    3.5mm Stereo Jack
    3.5mm Stereo Jack
    BNC    		 1
    1
    2
    1
    1
    2
    1
    3D Formats Supported
    		 HDTV Formats Supported

    Frame Sequential
    Dual-Pipe    		 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz)
    1080i (50Hz, 60Hz)
    720p (50, 60Hz)
    2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
    4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
    Computer Compatibility Bandwidth
    2D
    4K-UHD up to 60Hz.
    WQXGA+ up to 120Hz.
    3D
    Supported formats will be displayed within WQXGA+.    		 498 megapixels per second via DisplayPort and HDMI 2.0.
    Remote Control Automation Control
    Addressable IR remote control, wireless and wired.
    On-Board keypad    		 Crestron RoomView® Connected
    PJLink Class 1
    LAN
    RS232
    AMX (Device Discovery)
    Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display)
    Colour Temperature Operation
    3200K to 9300K
    illumination Type
    		 Typical illumination Life
    Laser Light Source 20,000 hours
    Lenses

    Lens

    Part No.

    Optimised Focus Range*

    Lens Shift
    0.38 :1 fixed 117-341 0.68m - 2.44m Depends on image size, see Installation Guide.
    0.74 - 0.93 :1 zoom 115-339 1.02m - 12.7m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
    0.76 :1 fixed 112-499 0.81m - 5.08m none
    1.24 - 1.78 :1 zoom 112-500 1.33m - 11.73m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
    1.71 - 2.25 :1 zoom 112-501 1.83m - 14.9m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
    2.2 - 3.67 :1 zoom 112-502 2.36m - 24.2m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
    3.54 - 5.36 :1 zoom 112-503 3.8m - 35.35m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
    5.24 - 8.27 :1 zoom 112-504 5.59m - 54.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame

    * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

    Lens Mount

    Motorised and programmable shift, zoom and focus.
    Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).
    Mechanical Mounting Orientation
    Front/Rear Table
    Front/Rear Ceiling
    Adjustable Front/Rear Feet    		 Table Top or Inverted: Yes
    Pointing Up:        Yes
    Pointing Down:   Yes
    Roll (Portrait):      Yes
    Power Requirements Power Consumption
    100-130VAC and 200-240VAC selectable, 50/60Hz single phase 950 W @220 Vac (1000 W @110 Vac)
    Thermal Dissipation
    		 Fan Noise
    Max 3139 BTU/hour @100 VAC
    Max 3002 BTU/hour @240 VAC    		 Smooth Picture On:
    Normal mode: typical 40 (max 42) dBA
    Eco2 mode: typical 37 (max 39) dBA
    Smooth Picture Off:
    Normal mode: typical 38 (max 40) dBA
    Eco2 mode: typical 34 (max 36) dBA
    Operating/Storage Temperature
    		 Operating Humidity
    Operating: 5 to 40C (41 to 104F)
    Storage: -10 to 60C (14 to 140F)    		 10 to 85% non-condensing
    Weight (Chassis Only)
    		 Dimensions
    28.15 kg
    62 lb
    		L: 59.83 cm x W: 50 cm x H: 21.85 cm
    L: 23.55 in x W: 19.68 in x H: 8.60 in
    Safety & EMC Regulations

    CE, FCC Class A, CCC, UL/cUL, FDA CB, KC, CEL, CECP
    Accessories
    Accessory Part No.
    Infrared Remote (replacement)
    		 117-880

    *Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.

    Downloads

    PDF CAD Drawings

    AUTOCAD Drawings

    STEP / IGS Drawings

    Lens CAD Drawings

    User Guides

    Laser Risk Group Document

    Important Information

    Important Information (Korean)

    Control Protocol

    Ultra Short Throw Lens

    Ultra Short Throw Lens Installation Guide

    Specifications subject to change without notice. ©2020 Digital Projection.
