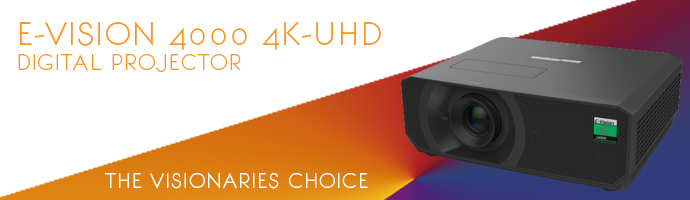

E-Vision 4000 4K-UHD

3,300 ANSI / 3,800 ISO Lumens | Contrast Ratio: 500,000:1 Advanced Black. 1,300:1 native | Part Number: 121-804


Key Specifications:

Colour System: Laser Phosphor
Display Type: 1 x 0.47" DarkChip 3™ DMD™
DMD Specification: 3840 x 2160
Aspect Ratio: 16x9
Fill Factor
Key Features:
  • 4K-UHD
  • Lens included 1.27 (Wide) - 1.7:1 (Tele)
  • Compact quiet projector, ideal for residential applications
Video & Graphics Processing
  • 2 x HDMI with HDCP
  • 3D support for Side by Side, Frame Packing and Top and Bottom formats
  • HDR processing
  • MEMC for enhanced motion performance
  • Synchronisation of active 3D glasses
  • DICOM simulation mode
Geometry Correction
  • Vertical Keystone correction adjustment
    Selectable 16:9, 4:3, Letterbox and Full Screen aspect ratios
  • Digital Zoom +10 ~ -10
HDBaseT® Interface
  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable
  • Allows the projector to be placed up to 100m from the source with low cost cabling
  • HDBaseT® includes audio, Ethernet 100BaseT and RS232/IR control
Colour Processing
  • 6 Segment (WGYWGY) Phosphor wheel
  • 8 Segment (BGYRBGYR) Colour wheel
  • 10-bit colour display (30 bits per pixel : 1,073,441,824 colours)
  • Powerful seven point colour correction for accurate colour matching
Source Compatibility Graphics standards up to 1920 x 1200 resolution at 60Hz.
Input support for 4K-UHD, 3840 x 2160 and 4096 x 2160 at 60 Hz.
Inputs/Outputs
Video & Computer
Type Connector Qty
HDMI 2.1
VGA / Analog RGB HDBaseT
USB Type A / (5V/2A)
NOTE: The USB is to power external interfaces.

Audio:

Audio IN L+R
Audio OUT (variable) Speaker
HDMI
15-pin D-Sub RJ45
USB Type A





3.5 mm jack
3.5 mm jack
10W speaker
2
1
1
1




1
1
1
.
Communication & Control
Type Connector Qty
LAN
RS-232C
USB (for Service) 3D Sync Out
12V Trigger

NOTE: The HDBaseT and LAN ports are seperate.
RJ45
9-pin D-sub
Mini B
VESA 3-PIN mini DIN
3.5mm jack
1
1
1
1
1
3D Formats Supported Frame Packing
Side By Side (half)
Top and Bottom
HDTV Formats Supported 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz) 1080i (50Hz, 60Hz) 720p (50Hz, 60Hz)
Computer Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz
Bandwidth
Remote Control IR remote control, 2 x IR receivers
Automation Control LAN control - Crestron RoomView® Connected
LAN control - Crestron eControl
LAN control - Extron
LAN control to RS232 by Telnet
HDBaseT communication
Projector status email alerts
PJ Link (Class1)
Colour Temperature Warm / Normal / Cold
Operation
illumination Type Laser Light Source
Typical illumination Life 20,000 hours
Lenses
Lens Part No. Optimised Focus Range* Lens Shift (Frame)
1.13 - 1.7:1 N/A 1.6m - 8m Vert: 0.60 (U) 0.60 (D) frame, Hor: 0.20 (L) 0.20 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount Manual vertical and horizontal shift, with manual focus and zoom
Mechanical Mounting Front/Rear
Front/Rear Ceiling
Two adjustable front feet
Ceiling Mount compatible chassis with 4 off M4 mounting holes
Orientation Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes
Power Requirements 100-240VAC 50/60Hz single phase
Power Consumption Normal Mode (100%): 538W@240VAC, 570W@100VAC
Thermal Dissipation Normal Mode (typical):
1945 BTU/Hour @ 100VAC
1836 BTU/Hour @ 240VAC
Fan Noise Normal Mode (Typical): 35 dBA / Max: 37 dBA
Operating/Storage Temperature Operating: Operating: 0° to 40°C (32°F to 104°F)
Storage: -10° to 60°C (14°F to 140°F)
Operating Humidity 10% to 85% non-condensing
Weight 12 kg / 26.45 lbs
Dimensions L: 405 mm W: 480 mm H: 180 mm
L: 15.94 in W: 18.89 in H: 7.08 in
Safety & EMC Regulations UL/cUL, CB, CCC, FCC Class B, FDA, CE, UKCA, BSMI IEC 60825-1:2007 3R
IEC 60825-1:2014 Class 1
IEC EN 62471-5 Risk Group 2
GB 7247.1-2012
RCM
Accessories
Accessory Part No.
Infrared Remote (replacement) 122-755

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.

Downloads

PDF CAD Drawings

AUTOCAD Drawings

STEP / IGS Drawings

User Guide

User Guides

User Guides (German)

User Guides (French)

Laser Risk Group Document

Control Protocol
