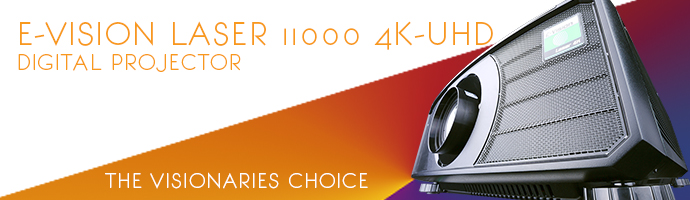

E-Vision Laser 11000 4K-UHD

9,500 ANSI / 10,500 ISO Lumens | Contrast Ratio: 6,000:1 (Dynamic Black) 1,000:1 native | Part Number: 120-602

Key Specifications:

Colour System:

Laser Phosphor with enhanced colourwheel

Display Type:

1 x 0.66" WQXGA+ TRP UHD DMD™

DMD Specification:

Display resolutions 4K-UHD (3840 x 2160)
or WQXGA+ (2716 x 1528)
8.3 megapixels on screen at 4K-UHD
Fast transit pixels for smooth greyscale and improved contrast.

Aspect Ratio:

16:9

Fill Factor

Not applicable: Smooth Picture DMD™

Key Features:

Video & Graphics Processing

HDR processing
Two projectors in one - 4K-UHD and WQXGA+
DisplayPort 1.2 with HDCP 2.2
2 x HDMI 2.0 with HDCP 2.2
2 x HDMI 1.4b inputs with HDCP 1.4 for Dual Pipe processing and Frame Sequential 3D Format.
Sequential Processing: 3D via single HDMI 1.4b input
Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs
Synchronisation of active glasses
3G-SDI with loop-through
DICOM simulation mode

Geometry Correction

Onboard 4-Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc, and Image Rotation
User definable custom warp
Digital zoom, pan and scan.
Independent four boundary blanking control for custom input window sizing
Scaling available for fixed aspect ratio screens.
Unscaled processing for pixel mapped display.

Edge Blending

Blending control available for all sides with width control.
Correction for non-active pixels at the edge of the display.

Picture in Picture

Two sources can be displayed simultaneously using 2D inputs with the original aspect ratios maintained

HDBaseT® Interface

Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable
Allows projector to be placed up to 100m from source with low cost cabling
Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4

Colour Processing

Four colour modes available: ColorMax / Manual Color Matching / Color Temperature / Gains and Lifts
Powerful seven point colour correction for accurate colour matching with presets
Easy colour temperature selection
Manual seven point colour adjustment
Traditional lifts and gains

Projector Controller Software

Intuitive user interface for network control
Simultaneous control of user-defined groups of projectors
At-a-glance monitoring of projector status

Projector Automation

Real-time clock provides daily on/off automation
E-mail alerts for system status

Source Compatibility

2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs.
3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs.
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
WQXGA+ mode
2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+.
3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+.
4K-UHD mode
2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD.
Auto mode
Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD.
Sources up to WQXGA+ will be displayed scaled to fit WQXGA+.

Inputs/Outputs

Video & Computer
Type	Connector	Qty
DisplayPort 1.2 (2D) HDMI 1.4b (3D) HDMI 2.0 (2D) 3G-SDI in (2D) 3G-SDI out HDBaseT (see LAN) (2D)	DisplayPort HDMI HDMI BNC BNC RJ45	1 2 2 1 1 1

Communication & Control
Type	Connector	Qty
3D Sync Out 3D Sync In LAN RS232 Wired Remote 12V Trigger 3D Sync IR Out NOTE: One of the LAN ports is shared with HDBase-T.	BNC BNC RJ45 9-pin D Sub 3.5mm Stereo Jack 3.5mm Stereo Jack BNC	1 1 2 1 1 2 1

3D Formats Supported

Frame Sequential
Dual-Pipe

HDTV Formats Supported

1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz)
1080i (50Hz, 60Hz)
720p (50, 60Hz)
2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)

Computer Compatibility

2D
4K-UHD up to 60Hz.
WQXGA+ up to 120Hz.
3D
Supported formats will be displayed within WQXGA+.

Bandwidth

498 megapixels per second via DisplayPort and HDMI 2.0.

Remote Control

Addressable IR remote control, wireless and wired.
On-Board keypad

Automation Control

Crestron RoomView® Connected
PJLink Class 1
LAN
RS232
AMX (Device Discovery)
Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display)

Colour Temperature

3200K to 9300K

Operation

illumination Type

Laser Light Source

Typical illumination Life

20,000 hours

Lenses

Lens	Part No.	Optimised Focus Range*	Lens Shift (Frame)
0.38 :1 fixed	117-341	0.68m - 2.44m	Depends on image size, see Installation Guide.
0.74 - 0.93 :1 zoom	115-339	1.02m - 12.7m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
0.76 :1 fixed	112-499	0.81m - 5.08m	none
1.24 - 1.78 :1 zoom	112-500	1.33m - 11.73m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.71 - 2.25 :1 zoom	112-501	1.83m - 14.9m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
2.2 - 3.67 :1 zoom	112-502	2.36m - 24.2m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
3.54 - 5.36 :1 zoom	112-503	3.8m - 35.35m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
5.24 - 8.27 :1 zoom	112-504	5.59m - 54.8m	Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount

Motorised and programmable shift, zoom and focus.
Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).

Mechanical Mounting

Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet

Orientation

Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes

Power Requirements

200-240VAC 50/60Hz single phase 6.6A
100-130VAC 50/60Hz single phase 14.0A Note: that in 100-130VAC operation, the projector will be at 80% brightness

Power Consumption

1080W @110V,
240V_50HZ Typical: 1290W

Thermal Dissipation

Typical 3685 BTU/Hour @ 100VAC
Typical 4406 BTU/Hour @ 240VAC

Fan Noise

Smooth Picture On:
Normal mode: typical 43 (max 45) dBA
Eco mode: typical 39 (max 41) dBA
Smooth Picture Off:
Normal mode: typical 42 (max 44) dBA
Eco mode: typical 38 (max 40) dBA

Operating/Storage Temperature Operating:

Operating: 5 to 40C (41 to 104F)
Storage: -10 to 60C (14 to 140F)

Operating Humidity

10 to 85% non-condensing ((with maximum temperature of 40C )

Weight

31 kg / 63.34 lbs

Dimensions

L: 59.83 cm x W: 50 cm x H: 21.85 cm
L: 23.55 in x W: 19.68 in x H: 8.60 in

Safety & EMC Regulations

UL/cUL, BIS, CB, CCC, CQC Eco label, CECP, KC, KTL, IC,BSMI, RoHS (China), RoHS (EU),FCC Class A, FDA,CE, IEC EN 60825-1 Class 3R Laser Product, IEC EN 62471-5 Risk Group 2, WEEE (EU), PSE, UKCA

Accessories

Accessory	Part No.
Infrared Remote (replacement)	117-880

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
