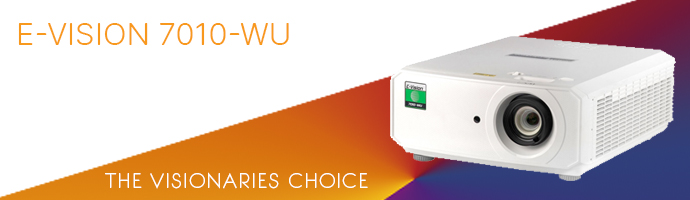

| Colour System: |
Laser Phosphor |
| Display Type: |
1 x 0.67" DarkChip™ DMD™
|
| DMD Specification: |
1920 x 1200 pixels native resolution.
Fast transit pixels for smooth greyscale and improved contrast. |
| Aspect Ratio: |
16x10 |
| Fill Factor |
|
| Key Features: |
Video & Graphics Processing
- HDMI 1.4a mandatory compliance for Side by Side, Frame Packing, Frame Sequential and TopBottom 3D Formats.
- Syncronisation of active glasses or polarising switcher.
- DICOM simulation mode (For non-diagnostic or training)
Geometry Correction
- Vertical & Horizontal Keystone correction
- Four Corner adjustment
- Selectable aspect ratios: Fill, 4:3, 16:9, Letter Box, Native, 2.35:1
- Digital Zoom +10 / -10
HDBaseT Interface
- Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
- Allows the projector to be placed up to 100m from the source with low cost cabling.
- HDBaseT Includes Audio, Ethernet 100BaseT and RS232/IR control.
Colour Processing
- Phosphor wheel: 3 Segment GBY 2 x 7200rpm
- Colour wheel: 4 Segment RGBW 2 x 7200rpm
- 10-bit colour processing (30-bits per pixel)
- Powerful seven point colour correction for accurate colour matching.
Source Compatibility
- Graphics standards up to 1920 x 1200 resolution at 60Hz
|
| Inputs/Outputs |
| Video & Computer |
| Type |
Connector |
Qty |
HDMI 1.4a
HDBaseT-(LAN/HDBaseT)
VGA / Analog RGB
VGA Monitor out
Composite Video
Microphone In
Audio L/R In
Audio L/R In
Audio L/R Out |
HDMI
8P8C "RJ45"
D-Sub
D-Sub
RCA
3.5mm Jack
3.5mm Jack
1xRCA pair
3.5mm Jack |
3
1
1
1
1
1
1
1
1 |
.
| Communication & Control |
| Type |
Connector |
Qty |
3D Sync Out
LAN
HDBaseT with Ethernet \ RS232 \IR control
Serial RS-232C (In/Out)
Service USB
USB Power out 5V/1.5A
|
3-pin DIN
8P8C "RJ45"
8P8C "RJ45"
9-pin D-Sub
USB Type B
USB Type A |
1
1
1
1
1
1 |
|
| 3D Formats Supported |
Frame Packing
Frame Sequential
Side By Side (half)
Top and Bottom |
| HDTV Formats Supported |
SDTV (480i, 576i) EDTV (480p, 576p) HDTV (720p, 1080i, 1080p) NTSC (M, 3.58/4.43 MHz) PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L) |
| Computer Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA@60hz, Mac |
| Bandwidth |
|
| Remote Control |
IR remote control |
| Automation Control |
LAN
RS-232
Alert Mail for Projector
LAN Control-Crestron® Roomview™-Connected
LAN Control-Crestron® eControl
LAN control - Extron®
LAN Control-PJ Link compatible
LAN Control-AMX® SSDP
LAN to RS232 (RS232 by Telnet)
Concurrence Control for RS232/LAN
PJ Link (Class 1) |
| Colour Temperature |
Warm / Normal / Cold |
| Operation |
 |
| illumination Type |
Laser Light Source |
| Typical illumination Life |
20,000 hours |
| Lenses |
| Lens |
Part No. |
Optimised Focus Range* |
Lens Shift (Frame) |
| 1.15 - 1.9:1 (fixed) |
N/A |
1.5m - 5m (Optical range) 1.5m - 8m (Mechanical range) |
Vert: Fixed Offset 0.65 (U) frame with small variable vertical and horizontal shift |
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
|
| Lens Mount |
Manual focus and zoom |
| Mechanical Mounting |
Front/Rear Table
Front/Rear Ceiling
2 x adjustable front feet for 10° of tilt (43mm)
Ceiling Mount compatible chassis with 7 off M4 mounting holes available,
Kensington® Security Slot
|
| Orientation |
Table Top or Inverted: Yes
Pointing Up: Yes
Pointing Down: Yes
Roll (Portrait): Yes |
| Power Requirements |
100-240VAC 50/60Hz single phase 5.3A |
| Power Consumption |
515W @ 230VAC (100% Normal mode) Maximum
530W @ 100VAC (100% Normal mode) Maximum
|
| Thermal Dissipation |
1757 BTU/Hour @ 230VAC (100% Normal mode)
1808 BTU/Hour @ 100VAC (100% Normal mode)
|
| Fan Noise |
39 dBA Typical (100% Normal Mode)
37dBA (80% ECO Mode) |
| Operating/Storage Temperature Operating: |
Operating: 0° to 40°C (32F to 104F)
Storage: -20° to 60°C (-4F to 140F) |
| Operating Humidity |
10 to 85% non-condensing |
| Weight |
12 kg / 26.45 lbs |
| Dimensions |
L: 44.6 cm W: 36.0 cm H: 16.7 cm
L: 17.54 in W: 14.17 in H: 6.57 in |
| Safety & EMC Regulations |
UL / cUL (USA/Canada), CB, CCC (China), FCC Class B (USA), FDA, CE (European Economic Area), RCM (Australia), Others TBD
|
| Accessories |
*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
|
