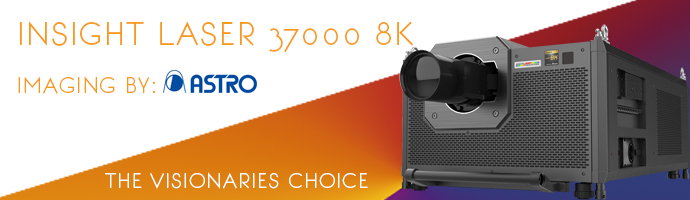

INSIGHT LASER 37000 8K (Preliminary)

37,000 ISO Lumens | Contrast Ratio: 2,000:1 Native | Part Number: 120-782

Key Specifications:

Colour System:

Laser Phosphor with ColorBoost + Red Laser

Display Type:

3 x 1.38" DarkChip 3 DMD , +/- 12° tilt angle

DMD Specification:

Displays 8K-UHD 7680x4320, 4096 x 2160 native

Aspect Ratio:

1.9:1

Fill Factor

87%

Key Features:

High Performance High resolution projector
Displays up to 8K-UHD 7680x4320 @ 120Hz
Ultra high frame rate capability up to 240Hz at 4K resolution
Low latency processing
Laser power dimming
Input via DisplayPort, SDI or HDMI
Compact integrated chassis
Long life light source
Sealed light module

Colour Processing

Powerful seven point colour correction for accurate colour matching.
Selectable de-gamma curves
Individual R,G,B lifts and gains

Projector Controller Software

Intuitive user interface for network control.
Simultaneous control of user-defined groups of projectors.
At-a-glance monitoring of projector status.

Source Compatibility

Up to 7680x4320 resolution at 60Hz via DisplayPort, SDI or HDMI.
Up to 7680x4320 resolution at 120Hz via 12G SDI

Inputs/Outputs

Video & Computer
Type	Connector	Qty
3G-SDI 12G-SDI HDMI DisplayPort	BNC BNC HDMI DisplayPort	16 8 4 2

Communication & Control
Type	Connector	Qty
LAN RS-232 Wired Remote Sync	RJ45 9-pin D-Sub 3.5mm Stereo Jack BNC (TBC)	1 1 1 1

3D Formats Supported

Dual Pipe 7680 x 4320 @ 120Hz (TBC) via 12G SDI

HDTV Formats Supported

4096 x 2160p (24, 59.94, 60 Hz)
3840 x 2160p (24, 59.94, 60 Hz)
1080p (24, 59, 94, 60 Hz)

Computer Compatibility

Up to 7680x4320

Bandwidth

N/A

Remote Control

Addressable IR remote Control, Wireless and wired.
On-Board keypad.

Automation Control

RS232
LAN

Colour Temperature

3200K to 9300K

Operation

illumination Type

Laser Light Source

Typical illumination Life

20,000 hours

Lenses

Lens	Part No.	Optimised Focus Range*	Lens Shift (Frame)
7680 X 4320	-	-	-
1.21 - 1.83:1 zoom	115-627	2.5m - 100m	Vert: 0.40 (U) 0.20 (D) frame, Hor: 0.10 (L) 0.14 (R) frame
1.76 - 2.77:1 zoom	115-630	3.5m - 100m	Vert: 0.45 (U) 0.20 (D) frame, Hor: 0.10 (L) 0.17 (R) frame
2.70 - 5.31:1 zoom	115-632	4.5m - 100m	Vert: 0.42 (U) 0.20 (D) frame, Hor: 0.10 (L) 0.17 (R) frame
At Native 4K	-	-	-
1.13 - 1.72:1	115-627	2.5m - 100m	Vert: 0.34 (U) 0.19 (D) frame, Hor: 0.08 (L) 0.10 (R) frame
1.65 - 2.60:1	115-630	3.5m - 100m	Vert: 0.40 (U) 0.20 (D) frame, Hor: 0.13 (L) 0.13 (R) frame
2.53 - 4.98:1	115-632	4.5m - 100m	Vert: 0.37 (U) 0.20 (D) frame, Hor: 0.13 (L) 0.13 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount

Motorised shift, zoom and focus. Intelligent Lens Memory with user-definable preset positions.

Mechanical Mounting

Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear feet
Built-in stacking points
Eye-bolts for handling a single projector
Optional mounting/grab rail

Orientation

Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes

Power Requirements

200-240VAC 50/60Hz single phase Power connector: 32A Ceeform (Europe) or L6 30P (USA)

Power Consumption

3800W @ 240VAC

Thermal Dissipation

12965 BTU/Hour @ 240VAC (TBC)

Fan Noise

52dBA

Operating/Storage Temperature:

Operating: 0 to 35C (32 to 95F)
Storage: -20 to 60C (-4 to 140F)

Operating Humidity

10 to 90% non-condensing

Weight

132 kg / 291 lbs

Dimensions

L: 113.0cm W: 75.0cm H: 49.3cm
L: 44.5 inch W: 29.5 inch H: 19.4 inch

Safety & EMC Regulations

UL / cUL, CB, CE, FCC Class A, IEC EN 60825-1 Class 3R Laser Product, IEC EN 62471-5 Risk Group 3, BSMI, FDA, CCC

Accessories

Accessory	Part No.
Replacement filter set	120-784

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
