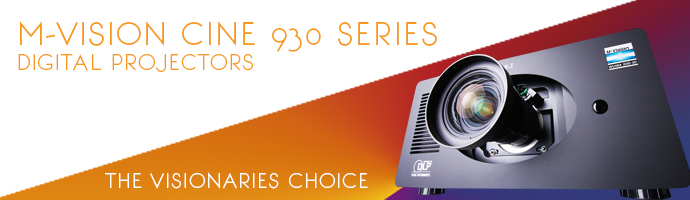

M-Vision 930 WUXGA 3D

12,000 Lumens | Contrast Ratio: 5,000:1 (Dynamic Black) 2,000:1 native | Part Number: 114-259


Key Specifications:

Colour System: 6 Segment RGBYCW Colour Wheel
Display Type: 1 x 0.96" DarkChip™ DMD™
DMD Specification: 1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio: 16x10
Fill Factor 87%
Key Features:
Video & Graphics Processing
  • HDMI 1.4 for Side by Side, Frame Packing & Top Bottom Formats.
  • Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources (example 144Hz display).
  • Dual Pipe Processing: Two sources in parallel for Left and Right Eyes.
  • Synchronisation of active glasses, DLP® Link™ glasses or polarising switcher.
  • High Bandwidth Digital & Analog Receiver with 10 Bit A-D.
  • The projector automatically detects interlaced video and implements 3:2 or 2:2 extraction as appropriate, with pixel based, motion adaptive interpolation and auto cadence correction.
  • 24p and 1080p native display.
Geometry Correction
  • Non-linear Warp adjustment by moving points on an interpolated grid.
  • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
  • Blanking control for custom input window sizing.
Edge Blending
  • Correction for non-active pixels at the edge of the display.
HDBaseT® Interface
  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows projector to be placed up to 80m from source with low cost cabling.
Projector Controller Software
  • Intuitive user interface for network control
  • Simultaneous control of user-defined groups of projectors
  • At-a-glance monitoring of projector status
  • Warp control.
Source Compatibility HDMI including Deep Color™ processing and 3D standards.
Dual Link DVI accepts graphics standards up to 1920 x 1200 at 120Hz.
Graphics standards up to 1920 x 1200 resolution at via DVI, HDMI or VGA.
Component Video (SD and HD) via YPrPb or RGB.

Inputs/Outputs
Video & Computer
Type Connector Qty
HDMI 1.4
DVI - Dual Link DVI-D
HDBaseT
VGA
Component Video
Component Video
HDMI
DVI
RJ45
15-pin D-Sub
3 x BNC
3 x RCA
2
1
1
1
1
1
.
Communication & Control
Type Connector Qty
3D Sync Out
3D Sync In
LAN
RS232
IR Input
12V Trigger
Service Port

NOTE: The LAN port is shared with HDBase-T.
BNC
BNC
RJ45
9-pin D Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
USB Type A
1
1
1
1
1
2
1
3D Formats Supported Frame Packing
Dual Pipe
Frame Sequential
Side By Side (half)
Top and Bottom
HDTV Formats Supported 1080p (23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz), 1080i (50Hz, 59.94Hz, 60Hz), 720p (50Hz, 59.94Hz, 60Hz)
Computer Compatibility Up to 1920 x 1200
Bandwidth 170 MHz on analog RGB
165 Megapixels per second on HDMI and DVI
297 Megapixels per second on Dual Link DVI
Remote Control IR Remote Control
On-Board keypad
Automation Control LAN
RS232
Colour Temperature User selectable from 5400 to 9300K
Operation
illumination Type 2 x 465W High Intensity Discharge
Typical illumination Life 1500 hours
Lenses
Lens Part No. Optimised Focus Range* Lens Shift (Frame)
0.84 - 1.03 : 1 zoom 114-313 1.5m - 10m Vert: 0.37 (U) 0.37 (D) frame, Hor: 0.12 (L) 0.12 (R) frame
1.56 - 1.86 : 1 zoom 114-314 2m - 12.4m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
1.85 - 2.40 : 1 zoom 114-315 2.5m - 15.9m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
2.40 - 4.00 : 1 zoom 114-316 4m - 26.6m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
4.00 - 7.00 : 1 zoom 117-463 4m - 42m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount Motorised shift, zoom and focus.
Mechanical Mounting Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Orientation Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      +/-10° from horizontal
Power Requirements 100 - 240VAC 50/60Hz single phase
Power Consumption 1200
Thermal Dissipation 3771
Fan Noise 48 dBA
Operating/Storage Temperature: Operating: 0 to 35C (32 to 95F)
Storage: -20 to 60C (-4 to 140F)
Operating Humidity 20% to 90% non-condensing
Weight 28.6 kg / 63.1 lbs
Dimensions L: 63.2 cm W:50 cm H:24 cm
L: 24.9 in W:19.7 in H:9.4 in
Safety & EMC Regulations CE, FCC Class A , UL, CCC
Accessories
Accessory Part No.
M-Vision 930 3D Lamp & Housing
Infrared Remote (replacement)
Replacement Filter Set
114-318
115-758
114-520

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
