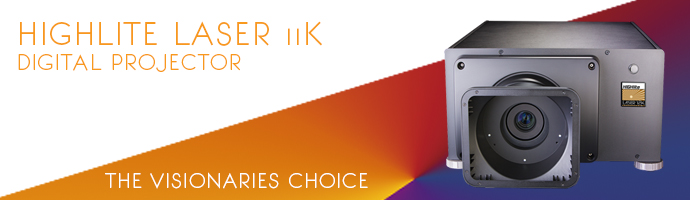

HIGHlite Laser 11k WUXGA 3D

11,000 Lumens | Contrast Ratio: 2,000:1 | Part Number: 115-204


Key Specifications:

Colour System: 3-chip DLP®
Display Type: 3 x 0.67" DarkChip™ DMD™
DMD Specification: 1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio: 16x10
Fill Factor 87%
Key Features:
Video & Graphics Processing
  • HDMI 1.4 for Side by Side, Frame Packing & Top Bottom Formats.
  • Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources (example 144Hz display).
  • Dual Pipe Processing: Two sources in parallel for Left and Right Eyes.
  • Synchronisation of active glasses or polarising switcher.
  • High Bandwidth Digital & Analog Receiver with 10 Bit A-D.
  • 3GSDI with loop-through.
  • The projector automatically detects interlaced video and implements 3:2 or 2:2 extraction as appropriate, with pixel based, motion adaptive interpolation and auto cadence correction.
  • 24p and 1080p native display.
Geometry Correction
  • Non-linear Warp adjustment by moving points on an interpolated grid.
  • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
  • Blanking control for custom input window sizing.
Edge Blending
  • Correction for non-active pixels at the edge of the display.
HDBaseT® Interface
  • Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows projector to be placed up to 80m from source with low cost cabling.
ColorMax™
  • Accurate matching of projectors in tiled or blended applications.
  • User selection and storage of primary and secondary color targets.
Projector Controller Software
  • Intuitive user interface for network control
  • Simultaneous control of user-defined groups of projectors
  • At-a-glance monitoring of projector status
  • Warp control.
Source Compatibility HDMI including Deep Color™ processing and 3D standards.
Dual Link DVI accepts graphics standards up to 1920 x 1200 at 120Hz.
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
Graphics standards up to 1920 x 1200 resolution at via DVI, HDMI or VGA.
Component Video (SD and HD) via YPrPb or RGB.

Inputs/Outputs
Video & Computer Communication & Control
Type Connector Qty Type Connector Qty
HDMI 1.4
DVI - Dual Link DVI-D
HDBaseT
3G-SDI In
3G-SDI Out
VGA
Component Video
Component Video
HDMI
DVI
RJ45
BNC
BNC
15-pin D-Sub
3 x BNC
3 x RCA
2
1
1
1
1
1
1
1
3D Sync Out
3D Sync In
LAN (see HDBaseT)
RS232
Wired Remote
12V Trigger
Service Port

NOTE: The LAN port is shared with HDBase-T.
BNC
BNC
RJ45
9-pin D Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
USB Type A
1
1
1
1
1
2
1
3D Formats Supported Frame Packing
Dual Pipe
Frame Sequential
Side By Side (half)
Top and Bottom
HDTV Formats Supported 1080p (23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz), 1080i (50Hz, 59.94Hz, 60Hz), 720p (50Hz, 59.94Hz, 60Hz)
Computer Compatibility Up to 1920 x 1200
Bandwidth 170 MHz on analog RGB
165 Megapixels per second on HDMI and DVI
297 Megapixels per second on Dual Link DVI
Remote Control Addressable IR remote control, wireless and wired
On-Board keypad
Automation Control LAN
RS232
Colour Temperature User selectable from 3200 to 9300K
Operation
illumination Type Laser Light Source
Typical illumination Life 20,000 hours
Lenses
Lens Part No. Optimised Focus Range* Lens Shift (Frame)
0.77 : 1 fixed HB 110-808 1.3m - 15.0m Vert: 0.2 (U) 0.2 (D) frame, Hor: 0.05 (L) 0.05 (R) frame
1.16 : 1 fixed HB 110-809 1.4m - 25.0m Vert: 0.2 (U) 0.2 (D) frame, Hor: 0.05 (L) 0.05 (R) frame
1.45 - 1.74 : 1 zoom HB 110-803 1.8m - 9.3m Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
1.74 - 2.17 : 1 zoom HB 112-878 2.2m - 11.8m Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
2.17 - 2.90 : 1 zoom HB 113-852 2.7m - 15.4m Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
2.90 - 4.34 : 1 zoom HB 110-806 3.6m - 22.5m Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.15 (L) 0.15 (R) frame
4.34 - 6.76 : 1 zoom HB 110-807 5.5m - 35m Vert: 0.6 (U) 0.6 (D) frame, Hor: 0.15 (L) 0.15 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount Motorised shift, zoom and focus.
Mechanical Mounting Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Orientation Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes
Power Requirements 200 - 240VAC 50/60Hz single phase
Power Consumption 1600
Thermal Dissipation 5027
Fan Noise 48 dBA
Operating/Storage Temperature Operating: Operating: 0 to 35C (32 to 95F)
Storage: -20 to 60C (-4 to 140F)
Operating Humidity 20% to 90% non-condensing
Weight 46.5 kg / 102.5 lbs
Dimensions H: 29.0 cm W: 55.2 cm L: 67.0 cm (88.7 cm w/lens hood)
H: 11.4 in W: 21.7 in L: 26.4 in (34.9 in w/lens hood)
Safety & EMC Regulations CE, FCC Class A , UL, CCC, KC
Accessories
Accessory Part No.
RapidRig™ Frame
Infrared Remote (replacement)
Replacement Filter Set
116-913
115-758
115-761

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
