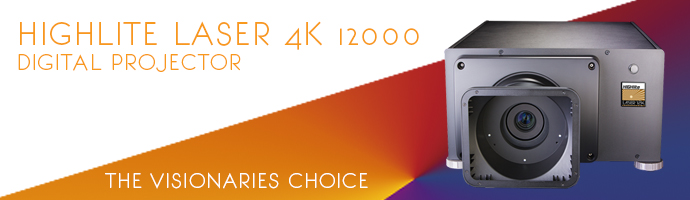

HIGHlite Laser 4K

11,000 ANSI / 12,500 ISO Lumens | Contrast Ratio: 2,000:1 | Part Number: 118-081


Key Specifications:

Colour System: 3-chip DLP®
Display Type: 3 x 0.65" 1080p DMD™
DMD Specification: Display capability up to 4K-UHD.
8.3 megapixels on screen at 4K-UHD (3840 x 2160).
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio: 16:9
Fill Factor Not applicable: Smooth Picture DMD™
Key Features:
Environmental
  • Sealed Optics
  • Filterless
  • Dust Resistant
Video & Graphics Processing
  • HDR processing
  • DisplayPort 1.2.
  • 2 x HDMI 2.0.
  • HDBase-T.
  • 3G-SDI with loop-through.
  • Scaling with aspect ratio management for a wide range of sources.
  • DICOM simulation mode.
Geometry Correction
  • Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.
  • Non-linear warp.
  • Digital zoom, pan and scan.
  • Blanking control for custom input window sizing.
  • Scaling available for fixed aspect ratio screens.
  • Unscaled processing for pixel mapped display.
Edge Blending
  • Blending control available for all sides with width control.
  • Correction for non-active pixels at the edge of the display.
Picture in Picture
  • Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained.
HDBaseT® Interface
  • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
  • Allows the projector to be placed up to 100m from the source with low cost cabling.
  • Supports up to 4K UHD 3840x2160 @ 60Hz (4:2:0) / 8-bit 3840x2160 @ 30Hz (4:4:4) / 8-bit 3840x2160 @ 30Hz (4:2:2) / 12-bit
Colour Processing
  • Four colour modes available.
  • Powerful seven point colour correction for accurate colour matching with presets.
  • Easy colour temperature selection.
  • Manual seven point colour adjustment.
  • Traditional lifts and gains.
Projector Controller Software
  • Intuitive user interface for network control.
  • Simultaneous control of user-defined groups of projectors.
  • At-a-glance monitoring of projector status.
Projector Automation
  • Real-time clock provides daily on/off automation.
  • E-mail alerts for system status.
Source Compatibility 2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs.
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant upto 1080p.
Inputs/Outputs
Video & Computer Communication & Control
Type Connector Qty Type Connector Qty
DisplayPort 1.2
HDMI 2.0
3G-SDI In
3G-SDI Out
HDBaseT/LAN
DisplayPort
HDMI
BNC
BNC
LAN RJ45
1
2
1
1
1
LAN
RS232
Wired Remote
12V Trigger
RJ45
9-pin D Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
1
1
1
2
3D Formats Supported Not applicable
HDTV Formats Supported 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
1080i (50Hz, 60Hz)
720p (50Hz, 60Hz)
2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
Computer Compatibility 2D
4K-UHD up to 60Hz
Bandwidth 498 Megapixels per second via DisplayPort and HDMI 2.0.
Remote Control Addressable IR remote control, wireless and wired.
On-Board keypad.
Automation Control Crestron Room View® Connected
PJ Link Class 1
LAN
RS232
AMX (Device Discovery)
Served web pages (Projector status, Projector control, Crestron RoomView®, Network settings, Alert mail setup, Time setup, Error log, On screen Display )
Colour Temperature 3200K to 9300K
Operation
illumination Type Laser Light Source
Typical illumination Life 20,000 hours
Lenses
Lens Part No. Lens Shift (Frame) Optimised Focus Range*
0.77 : 1 fixed HB 110-808 1.3m - 15.0m Vert: 0.38 (U) 0.38 (D) frame, Hor: 0.16 (L) 0.16 (R) frame
1.16 : 1 fixed HB 110-809 1.4m - 25.0m Vert: 0.38 (U) 0.38 (D) frame, Hor: 0.16 (L) 0.16 (R) frame
1.45 - 1.74 : 1 zoom HB 110-803 1.8m - 9.3m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.16 (L) 0.16 (R) frame
1.74 - 2.17 : 1 zoom HB 112-878 2.2m - 11.8m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.16 (L) 0.16 (R) frame
2.17 - 2.90 : 1 zoom HB 113-852 2.7m - 15.4m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.16 (L) 0.16 (R) frame
2.90 - 4.34 : 1 zoom HB 110-806 3.6m - 22.5m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.16 (L) 0.16 (R) frame
4.34 - 6.76 : 1 zoom HB 110-807 5.5m - 35m Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.16 (L) 0.16 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount Motorised and programmable shift, zoom and focus.
Intelligent Lens Memory with 10 user-definable preset positions (on selected lenses).
Mechanical Mounting Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Orientation Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes
Power Requirements 110 - 240VAC selectable, 50/60Hz single phase
(At 110 - 130VAC the light output is reduced to 70%.)
Power Consumption 1650W at 220VAC Nominal
Thermal Dissipation 5627 BTU/hr at 220 VAC, 4126 BTU/hr at 110 VAC
Fan Noise Full power 4K-UHD Typ: 43dBA, Max 45dBA
Operating/Storage Temperature Operating: Operating: 0 to 35C (32 to 95F)
Storage: -20 to 60C (-4 to 140F)
Operating Humidity 20% to 90% non-condensing
Weight 70 kg / 154.3 lbs
Dimensions H: 30.7 cm W: 58.5 cm L: 97.0 cm
H: 30.7 cm W: 70.1 cm L: 97.0 cm (with handles)
H: 12.1 in W: 23.0 in L: 38.2 in
H: 12.1 in W: 27.6 in L: 38.2 in (with handles)
Safety & EMC Regulations UL/cUL, CB, CCC, KC, RoHS (CN), FCC Class A, FDA, CE
IEC EN 60825-1:2014 Class 1 Laser Product
IEC 60825-1:2007 Class 3R Laser Product
IEC EN 62471-5:2015 Risk Group 2
WEEE (UK)
Accessories
Accessory Part No.
RapidRig™ Frame
Infrared Remote (replacement)
117-705
118-678

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
