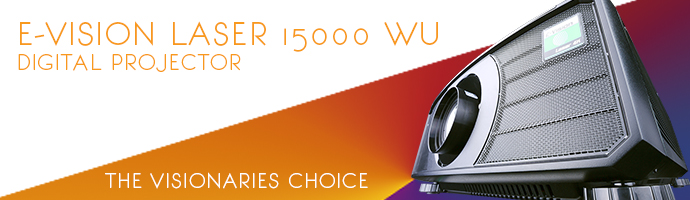

E-Vision Laser 15000 WU

15,000 ISO / 13,500 ANSI Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) 1,000:1 native | Part Number: 120-994

15,000 ISO / 13,500 ANSI Lumens | Contrast Ratio: 10,000:1 (Dynamic Black) 1,000:1 native | Part Number: 120-994

Colour System: DMD Specification:
Blue and Red Lasers with Phosphor wheel

Display Type:
1 x 0.67" DarkChip™ DMD™
1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast.
Aspect Ratio:
16x10
Fill Factor
87%

Key Features

Red Laser Assist

  • Uses blue and red laser diodes for increased colour fidelity and highly accurate colours

Video & Graphics Processing

  • HDMI 1.4b for Side by Side, Frame Packing, Frame Sequential & Top Bottom 3D formats.

  • Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources.

  • Triple Flash processing for 24Hz 3D input (Frame Packed and Dual Pipe 3D)

  • Dual Pipe Processing: Two sources in parallel for Left and Right eyes.

  • Synchronisation of active glasses.

  • 3GSDI with loop-through.

  • 24p and 1080p native display.

  • DICOM simulation mode.




Geometry Correction

  • Four Corners, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation.

  • Non Linear Warp.

  • Blanking control for custom input window sizing.

  • Digital zoom, pan and scan.

  • Scaling available for fixed aspect ratio screens and independent input aspect ratios.


Edge Blending

  • For independent edge and blend width adjustment.

  • Correction for non-active pixels at the edge of the display.

  • Electronic black level compensation.


Picture in Picture

  • Two sources can be displayed either one within the other (PIP), or side by side, with original aspect ratios maintained.


HDBaseT® Interface

  • Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable.

  • Allows the projector to be placed up to 100m from the source with low cost cabling.


Colour Processing

  • Powerful seven point colour correction for accurate colour matching.

  • Selectable default colour gamut


Projector Control

  • Intuitive user interface for network control


PC Projector Controller Application for:



  • Simultaneous control of user-defined groups of projectors

  • At-a-glance monitoring of projector status

  • Served web pages for browser monitoring and control access from PC's and Smart phones


Projector Automation

  • Real-time clock provides daily on/off automation.


Projector Maintenance Features

  • Sealed optics.

  • Long life 20,000 hour illumination.
Source Compatibility:
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
HDMI including Deep Color™ processing.
Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI, DisplayPort or VGA.
Component Video (SD and HD) via RGBHV.

Inputs/Outputs

 Video & Computer

Type

Connector

Qty
DVI-D 1.0
DisplayPort 1.1a
HDMI 1.4b
3G-SDI in
3G-SDI out
VGA / Analog RGB
VGA Monitor out
Component Video
HDBaseT (see LAN)		 DVI
DisplayPort
HDMI
BNC
BNC
15-pin D-Sub
15-pin D-Sub
5 x BNC
LAN RJ45		 1
1
2
1
1
1
1
1
1
 Communication & Control

Type

Connector

Qty
3D Sync Out
3D Sync In
LAN
RS232
Wired Remote
12V Trigger
USB Power 5V/2A

NOTE: The LAN port is shared with HDBase-T.

NOTE: USB Power only for WHDI interfaces.		 BNC
BNC
RJ45
9-pin D-Sub
3.5mm Stereo Jack
3.5mm Stereo Jack
USB Type A		 1
1
1
1
1
2
1
3D Formats Supported
 HDTV Formats Supported
Frame Packing
Dual Pipe
Frame Sequential
Side By Side (half)
Top and Bottom		 1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz),1080i (50Hz, 60Hz), 720p (50, 60Hz)
Computer Compatibility Bandwidth
Up to 2560 x 1600 RB displayed within WUXGA 165 MHz on analog RGB
165 Megapixels per second on HDMI
Remote Control Automation Control
Addressable IR remote control, wireless and wired.
On-Board keypad.		 PJLink Class 1
LAN
RS-232
AMX (Device Discovery)
Served web page
Crestron Connected
ART-NET control
Colour Temperature Operation
3200 to 9300K
illumination Type
 Typical illumination Life
Blue and Red Laser Light Source 20,000 hours
Lenses

Lens

Part No.

Optimised Focus Range*

Lens Shift
0.38 :1 fixed 117-341 0.68m - 2.44m Depends on image size, see Installation Guide.
0.75 - 0.93 :1 zoom 115-339 1.02m - 12.7m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
0.76 :1 fixed 112-499 0.81m - 5.08m none
1.25 - 1.79 :1 zoom 112-500 1.33m - 11.73m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
1.73 - 2.27 :1 zoom 112-501 1.83m - 14.9m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
2.22 - 3.67 :1 zoom 112-502 2.36m - 24.2m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
3.58 - 5.38 :1 zoom 112-503 3.8m - 35.35m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame
5.31 - 8.26 :1 zoom 112-504 5.59m - 54.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount

Motorised and programmable shift, zoom and focus.
Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).
Mechanical Mounting Orientation
Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet		 Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   Yes
Roll (Portrait):      Yes
Power Requirements Power Consumption
200-240VAC 50/60Hz single phase 8.2A
100-130VAC 50/60Hz single phase 11.9A
Note: that in 100-130VAC operation, the projector will be at 65% brightness		 Typical 1570W @ 240VAC in Normal mode
Typical 1025W @ 110VAC in Normal mode
Thermal Dissipation
 Fan Noise
Typical 5357 BTU/Hour @ 240VAC in Normal mode
Typical 3497 BTU/Hour @ 110VAC in Normal mode
Normal mode: 48 dBA Max, 46 dBA Typical
Eco mode: 45 dBA Max, 43 dBA Typical
Operating/Storage Temperature
 Operating Humidity
Operating: 0 to 35C (32 to 95F)
Operating: 35 to 40C (95 to 104F) w/ reduced light output
Storage: -20 to 60C (-4 to 140F)		 10 to 90% relative, non-condensing
Weight (Chassis Only)
 Dimensions
29.5 kg
65 lb
L: 59.83 cm x W: 50 cm x H: 21.85 cm
L: 23.55 in x W: 19.68 in x H: 8.60 in
Safety & EMC Regulations

UL / cUL, BIS, CB, CCC, KC, FCC (Part 15) Class A, FDA, CE, RoHS 2, IEC EN 60825-1-2014 Class 3R Laser Product, IEC EN 60825-1-2007 Class 1 Laser Product IEC EN 62471-5-2015 Risk Group 3
Accessories
Accessory Part No.
Infrared Remote (replacement)
Lens Hood
(Required in the USA for FDA Compliance with lenses 112-503 & 112-504)		 117-880
121-867

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.

Downloads

PDF CAD Drawings

AUTOCAD Drawings

STEP / IGS Drawings

Lens CAD Drawings

User Guides

User Guides (German)

User Guides (French)

Laser Risk Group Document

Important Information

Important Information (German)

Important Information (French)

Control Protocol

Ultra Short Throw Lens

Ultra Short Throw Lens Installation Guide
