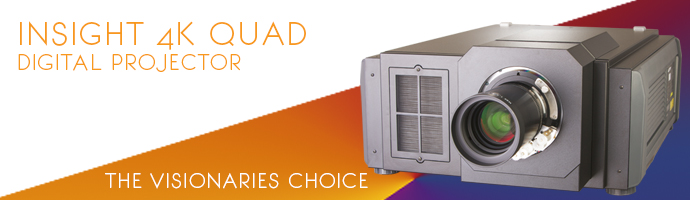

INSIGHT 4K Quad Lamp (Preliminary)

25,000 Lumens | Contrast Ratio: 2000:1 | Part Number: 115-900

Key Specifications:

Colour System:

3-chip DLP®

Display Type:

3 x 1.38" DarkChip™ DMD™

DMD Specification:

4096 x 2160 pixels native, +/- 12° tilt angle
Fast transit pixels for smooth greyscale and improved contrast.

Aspect Ratio:

1.90:1

Fill Factor

87%

Key Features:

Video & Graphics Processing

Up to 60fps 4096 x 2160 pixels sequential input via single cable (Display Port 1.2)
3D Capable
Scaling of HDMI 1.4 formats to fill the 4K display
Dark Time insertion capability
HDMI 1.4b up to 3840 x 2160 at 30 fps.
Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources (example 144Hz display).
Synchronisation of active glasses or polarising switcher.

Color adjustments

Up to 12 bits per color processing (depending on source and input type).
Degamma table maps 12 bit input to 16 bit palette (R, G & B) for display.
Individual R, G & B lift and gain.
Black and White level adjustment via Brightness & Contrast control.
Degamma selection from a list of parametric curves.

ColorMax™

Accurate matching of projectors in tiled or blended applications.
User selection and storage of primary and secondary user defined color targets up to 7 points.

3D Functionality

Full 4K 3D display capability
Frame multiplication capability (2x, 3x) with interleaving of Left/Right repeated frames.
Synchronisation of active glasses or polarising switcher.
Adjustable Dark Time and Synch Offset for optimisation of ghosting and smooth greyscale for switching glasses and polarizers.

Projector Control

Keypad.
Wired remote control.
Network control via RJ45 and protocol.
Group Controller Application

Source Compatibility

Graphics standards up to 4096 x 2160 at 60 fps via DisplayPort. 30 fps via HDMI.

Inputs/Outputs

Video & Computer
Type	Connector	Qty
DisplayPort 1.2 HDMI 1.4	DisplayPort HDMI	2 2

Communication & Control
Type	Connector	Qty
3D Sync Out 3D Sync In LAN RS232 Wired Remote In Infra-Red	BNC BNC RJ45 9-pin D Sub 3.5mm Stereo Jack Front and Rear IR Receivers	1 1 1 1 1 2

3D Formats Supported

Dual Pipe (Q3 2016)
Frame Sequential

HDTV Formats Supported

4096 x 2160p (24, 25, 30, 50, 59.94, 60 Hz)
3840 x 2160p (24, 25, 30, 50, 59.94, 60 Hz)
1080p (24, 25, 30, 50, 59.94, 60 Hz)

Computer Compatibility

Up to 4096 x 2160

Bandwidth

N/A

Remote Control

Wired remote control
On-Board keypad

Automation Control

RS232
LAN

Colour Temperature

Adjustable

Operation

illumination Type

4 x 465W High Intensity Discharge

Typical illumination Life

Full Power: 1500 hours (up to 6000 hours in lamp sequential mode) Eco Mode : 2000 hours (up to 8000 hours in lamp sequential mode)

Lenses

Lens	Part No.	Optimised Focus Range*	Lens Shift (Frame)
At Native 4K	-	-	-
0.93:1 fixed	117-310	0.5m - 100m	Vert: 0.21 (U) 0.21 (D) frame, Hor: 0.08 (L) 0.08 (R)
1.13 - 1.72:1	115-627	2.5m - 100m	Vert: 0.34 (U) 0.19 (D) frame, Hor: 0.08 (L) 0.10 (R) frame
1.65 - 2.60:1	115-630	3.5m - 100m	Vert: 0.40 (U) 0.20 (D) frame, Hor: 0.13 (L) 0.13 (R) frame
2.53 - 4.98:1	115-632	4.5m - 100m	Vert: 0.37 (U) 0.20 (D) frame, Hor: 0.13 (L) 0.13 (R) frame
At UHD	-	-	-
0.99:1 fixed	117-310	0.5m - 100m	Vert: 0.27 (U) 0.20 (D) frame, Hor: 0.10 (L) 0.11 (R)
1.21 - 1.83:1	115-627	2.5m - 100m	Vert: 0.40 (U) 0.20 (D) frame, Hor: 0.10 (L) 0.14 (R) frame
1.76 - 2.77:1	115-630	3.5m - 100m	Vert: 0.45 (U) 0.20 (D) frame, Hor: 0.10 (L) 0.17 (R) frame
2.70 - 5.31:1	115-632	4.5m - 100m	Vert: 0.42 (U) 0.20 (D) frame, Hor: 0.10 (L) 0.17 (R) frame

* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,

Lens Mount

Motorised shift, zoom and focus. Intelligent Lens Memory with user-definable preset positions.

Mechanical Mounting

Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet
Optional RapidRig™ frame with integrated pitch, roll and yaw adjustments.

Orientation

Table Top or Inverted: Yes
Pointing Up:        Yes
Pointing Down:   No
Roll (Portrait):      No

Power Requirements

200-240VAC 50/60Hz single phase

Power Consumption

2100W

Thermal Dissipation

7165 BTU/Hour

Fan Noise

58 dBA

Operating/Storage Temperature:

Operating: 0 to 40C (32 to 104F)
Storage: -10 to 50C (14 to 122F)

Operating Humidity

20 to 80% non-condensing

Weight

66.3 kg / 146.1 lbs

Dimensions

H: 32.5 cm W: 70.0 cm L: 82.0 cm
H: 12.8 in W: 27.56 in L: 32.3 in

Safety & EMC Regulations

CE, FCC Class A

Accessories

Accessory	Part No.
RapidRig™ Frame Replacement Filter Set Lens Adapter Kit for 0.72:1 4K Schneider Lens	116-064 117-751 117-343

*Dimensions included for reference only and are subject to change. Please download the full set of CAD files for this display for more accurate information.
