INSIGHT LASER 8K (Gen II)
INSIGHT LASER 8K (Gen II)
INSIGHT LASER 8K (Gen II)

Insight Laser 8K Gen II

8K 高解像度

・3チップDLP® 方式・1.38″ DarkChip ™ DMD ™ チップ採用
・37000 ANSI Lumens
・8K 解像度 (7680 X 4320)
・COLORBOOST+RED LASER 技術

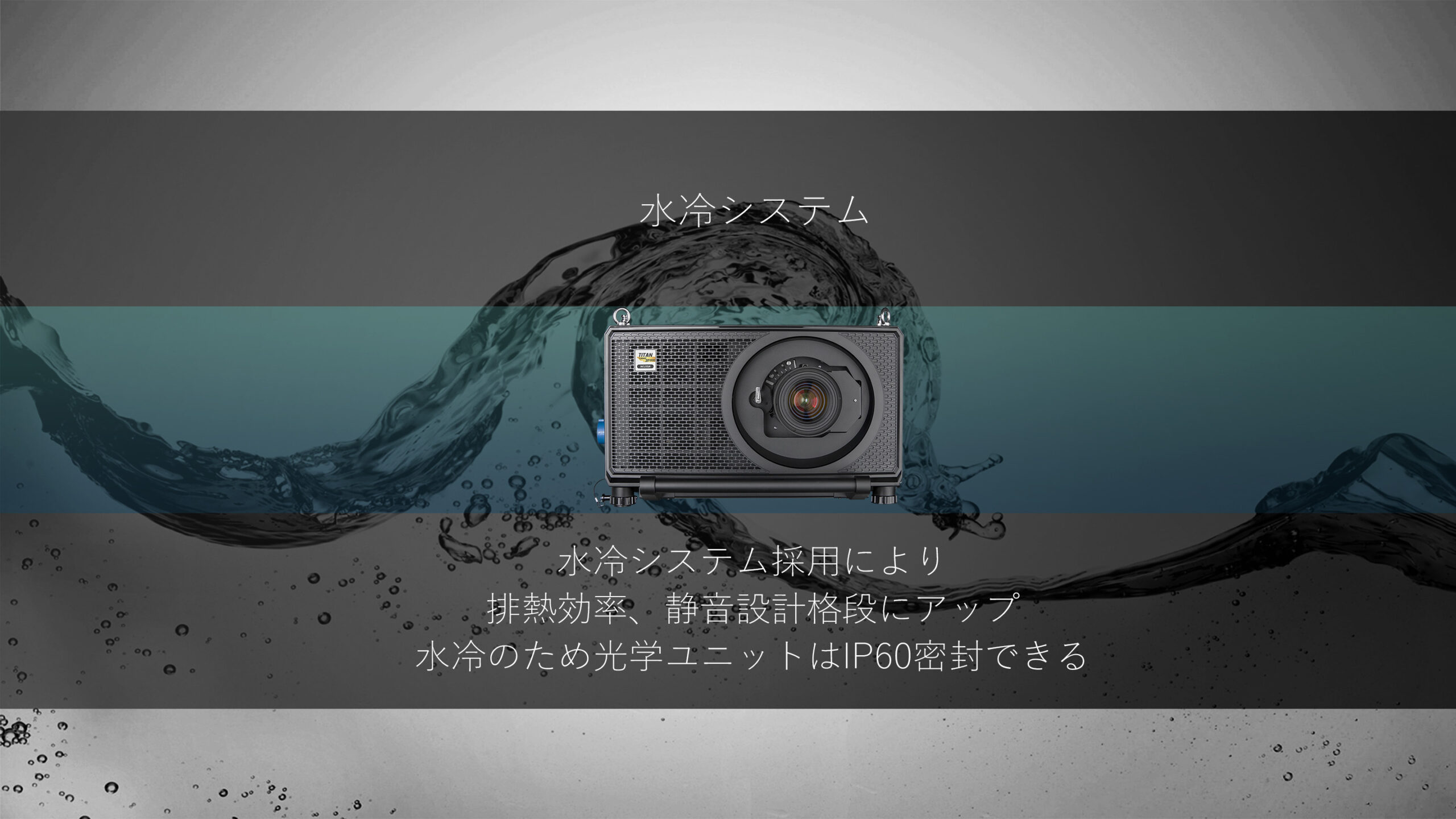

・IP60 Sealed Optics
・Fixed & Zoom Lens Options

詳細を見る :

仕様 PDF

当社のフラッグシッププロジェクターは、性能に関して独自のエリートクラスに属しています。INSIGHT LASER 8Kは、最も複雑な医療、科学、没入型ビジュアライゼーション、および大規模会場アプリケーションに最適な解決策となる、7680 X 4320ピクセルの超高解像度と最大37,000ルーメンの固体レーザー・フォスファー照明を提供します。解像度と輝度性能に加えて、INSIGHT LASER 8Kプロジェクターは、3つの1.38インチDarkChip™ DMD™とDPのColorMax™テクノロジーを組み合わせたDLPテクノロジーを使用して、優れた色の精度と黒のレベルを確保します。これらは、タイル状に並べたプロジェクターのマッチングに必要な画像特性となります。

最高の詳細を必要とするシミュレーションやビジュアライゼーションプロジェクトから、最も没入型の大規模映像体験を要求するエンターテイメント会場まで、INSIGHT DUAL LASER 8Kは、新しいパフォーマンスの基準を提供します。

INSIGHT LASER 8Kの固体レーザー照明システムにより、ランプ交換は必要ありません。定期的なランプ交換サイクルを排除することで、システムの操作が中断されず、フィルターレスの設計により、長期的なメンテナンスコストがほぼゼロに近くなります。この主要な利点により、INSIGHT LASER 8Kは、プロジェクターの寿命全体にわたって所有コストがはるかに低くなります。保証も、プロジェクターのすべてのコンポーネントと同じ期間、光源も含めてカバーしています。

8K Resolution with up to 37,000 Lumens of Laser Illumination for the Ultimate Experience in Visualization

Our flagship projector sits in an elite class all its own when it comes to performance. Providing an ultra-high resolution of 7680 X 4320 pixels up to 37,000 lumens of solid-state laser-phosphor illumination, the INSIGHT LASER 8K is the ultimate solution for the most elaborate, medical, scientific, immersive visualization and large-venue applications. In addition to the resolution and lumen performance, the INSIGHT LASER 8K projector uses DLP technology incorporating 3 x 1.38″ DarkChip™ DMD™ and DP’s ColorMax™ technology to ensure superb color accuracy and black levels. These are especially vital imaging characteristics when matching projectors in tiled or blended applications.

Simulation & visualization projects requiring unsurpassed detail to the most elite entertainment venues that demand the most immersive experience through large-scale imagery, the INSIGHT DUAL LASER 8K provides a new performance benchmark.

Lamp replacements are never required due to the INSIGHT LASER 8K’s solid-state laser illumination system. By eliminating regular lamp replacement cycles, system operation is never interrupted and with its filterless design, long-term maintenance cost is near zero. This key benefit allows the INSIGHT LASER 8K to offer a much lower cost of ownership over the lifespan of the projector. As evidence, the warranty also covers the light source for the same term as every other component in the projector.

INSIGHT LASER 8K (Gen II)

Key Features

  • 8K Resolution (7680 X 4320)
  • Up to 37,000 lumens
  • Smear Reduction Technology
  • 20,000 hours of system illumination
  • 3 x 1.38″ DarkChip™ DMD™
  • MultiAxis Portrait & Landscape Capable
  • Unbeatable cost of ownership

Downloads

INSIGHT LASER 8K (Gen II)
Download download View PDF download
INSIGHT LASER 8K (Gen II)
  • Part Number: 120-783

INSIGHT LASER 8K Awards

Looking for more information or guidance?

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you

Send us a message

By submitting this form you agree to Digital Projection storing your data for the purposes of responding to your enquiry.

TAA compliant symbol

TAA Compliant

  • Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions.  Toward that end, we are pleased to announce that most of our award-winning laser projectors are now TAA compliant*.  We are confident that this will provide more choices and options for those wanting the very best in projection technology.

Symbol for 8K technology

Full 8K Resolution

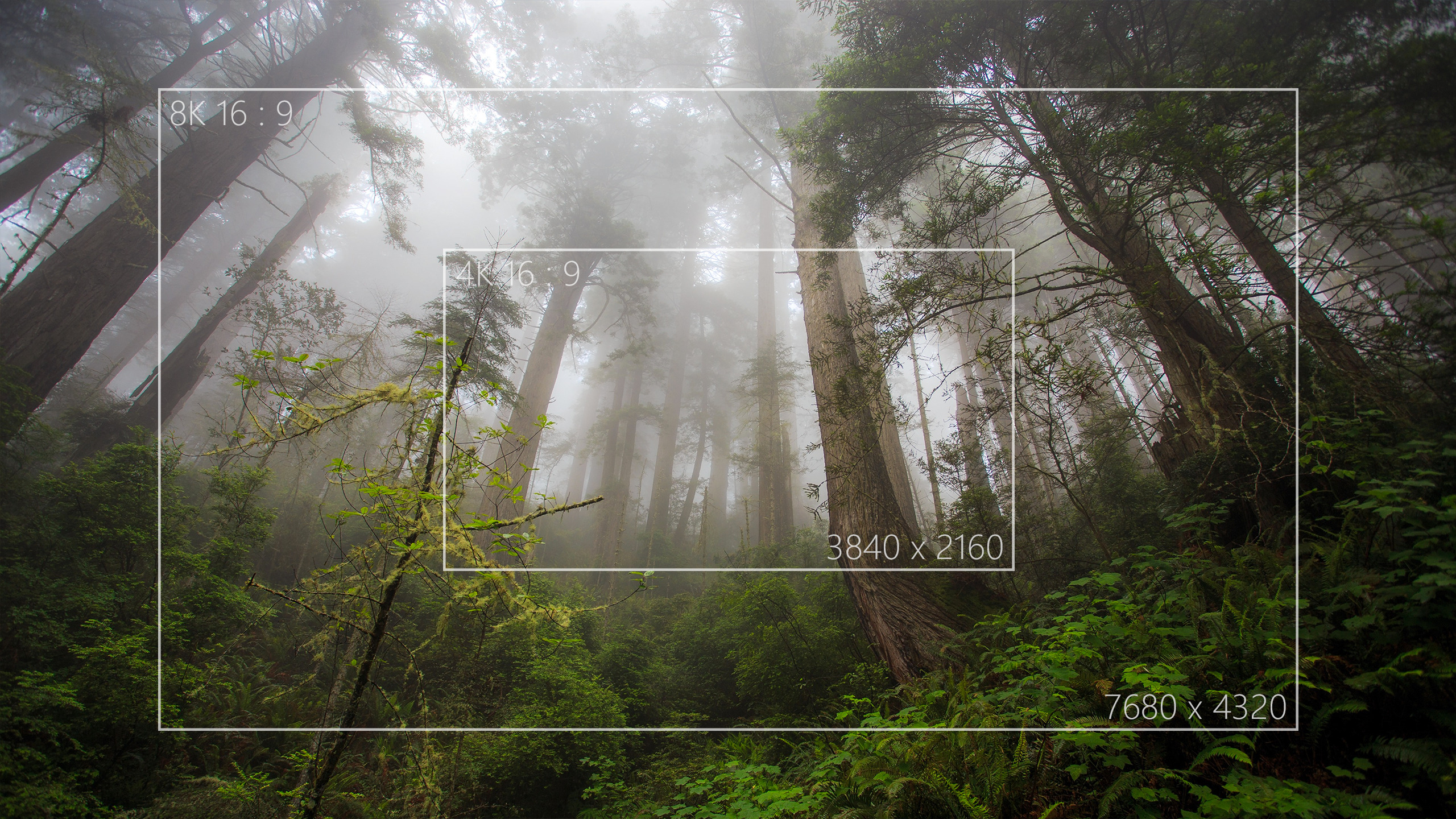

  • The INSIGHT LASER 8K offers 8K resolution (7680 X 4320), surpassing that of any DLP projector currently available.

Symbol for lamp-free

Lamp Free

  • The INSIGHT LASER 8K is a lamp-free projector meaning extensive savings on expensive maintenance and replacement cycles.

3 Year Warranty in the Americas

  • Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 3 years / 20,000 hours warranty.

symbol for 20,000 hours illumination

20,000 Hours Illumination

  • The laser light source lasts for 20,000 hours, giving stable and predictable illumination that far exceeds any lamp based product.

Symbol for projector controller software

Projector Controller Software

  • Projector Controller software allows full management and operation of multiple projectors from a single centralized PC-based application.  Ideal for use in large installations or where projectors are installed in multiple locations within a building, the software can dramatically reduce the time required for set up and configuration.
