M-Vision Laser 18000 WUXGA
M-Vision Laser 18000 WUXGA
M-Vision Laser 18000 WUXGA

M-Vision Laser 18000

Solid State Laser Phosphor

・1 チップDLP® 方式
・18000 ANSI Lumens
・WUXGA 解像度
・Colorboost® テクノロジー
・IP規格 IP60光学系統

詳細を見る :

仕様 PDF

M-Visionレーザー18000は、パワフルなシ1チップDLPプロジェクターで、18,000ルーメンの出力と10,000:1のコントラストを備え、明暗の諧調を豊かに表現、 1チップの価格帯で大画面のイメージングソリューションと3チップのパフォーマンスを提供します、さらにレーザー光源の採用により、高信頼性とメンテンナンスコストの軽減を実現します。高輝度が要求されるイベントには最適です。

The M-Vision Laser 18K is a powerful single chip DLP projector with an impressive 18,000 lumens output and 10,000:1 contrast ratio. The M-Vision Laser 18k brings budget-sensitive applications a large-screen imaging solution and near 3-Chip performance at a 1-Chip price point. Venues contending with ambient light, as well as applications needing a powerful yet budget-conscious large-format imagery solution, will directly benefit from the M-Vision 18K’s ample light output.

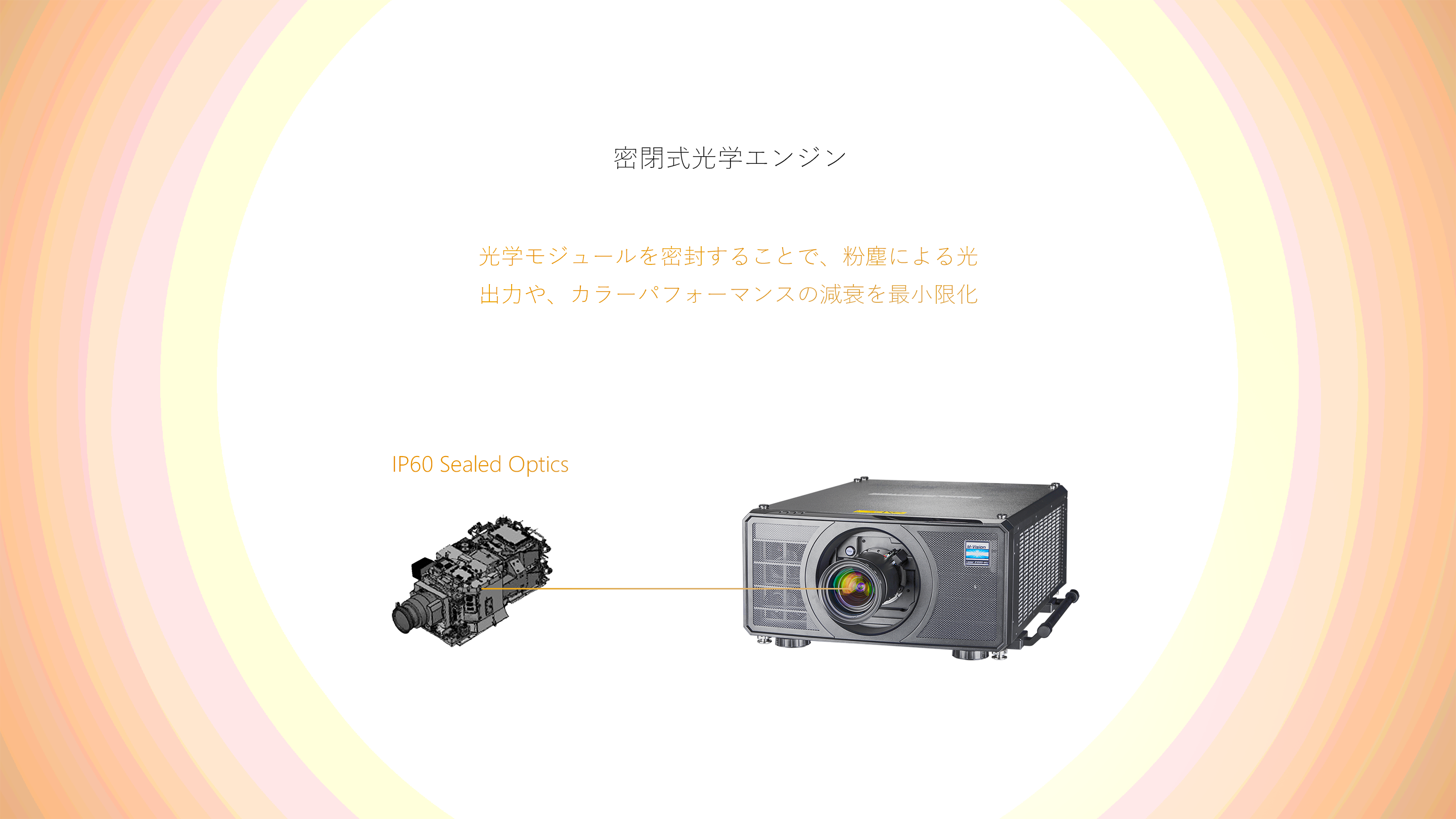

The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.

Perfectly suited to all applications where high brightness is required, no feature has been overlooked. DisplayPort accepts frame rates up to 60 Hz and HDMI 1.4 for Side by Side, Frame Packing & Top Bottom 3D formats. Finally Motorised shift, zoom and focus across the whole lens range offers superb flexibility and ease of setup. This projector really is a class leader.

Key Features

  • 18,000 ISO / 16,000 ANSI Lumens
  • WUXGA Resolution
  • 10,000:1 Dynamic Contrast
  • ColorBoost Technology
  • Sealed Optics
  • Part Number: 118-053

Spec Sheet

Download download View PDF view


M-Vision 18K Part Number: 1118-053
Download download View PDF download
M-Vision Laser 18000 WUXGA
  • 18,000 Lumens
  • 20,000 Hours Illumination
  • 0.96″ DarkChip™ DMD™
  • MultiAxis Orientation

Core Technologies

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you

Send us a message

By submitting this form you agree to Digital Projection storing your data for the purposes of responding to your enquiry.

ColorBoost + Red Laser Projection

ColorBoost Technology

  • The M-Vision Laser 18K’s built-in colour boost technology brings the most realistic and saturated colours to this 1-Chip DLP Projector. Intelligent processing brings the colour performance ever closer to that of a 3-Chip DLP projector.

Smart Stack System

SmartStack System

  • The intuitive stacking mechanisms means that M-Vision 18K projectors can be lock-stacked without any additional rigging frames or expense.

Projector Control Software

Projector Controller

  • Ideal for use in large installations or where projectors are in multiple locations in a building, the software can dramatically reduce the time required for set up and configuration – all from a single network enabled PC.

MultiAxis Projector Orientation

MultiAxis Orientation

  • For maximum flexibility, the M-Vision 18K can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between
