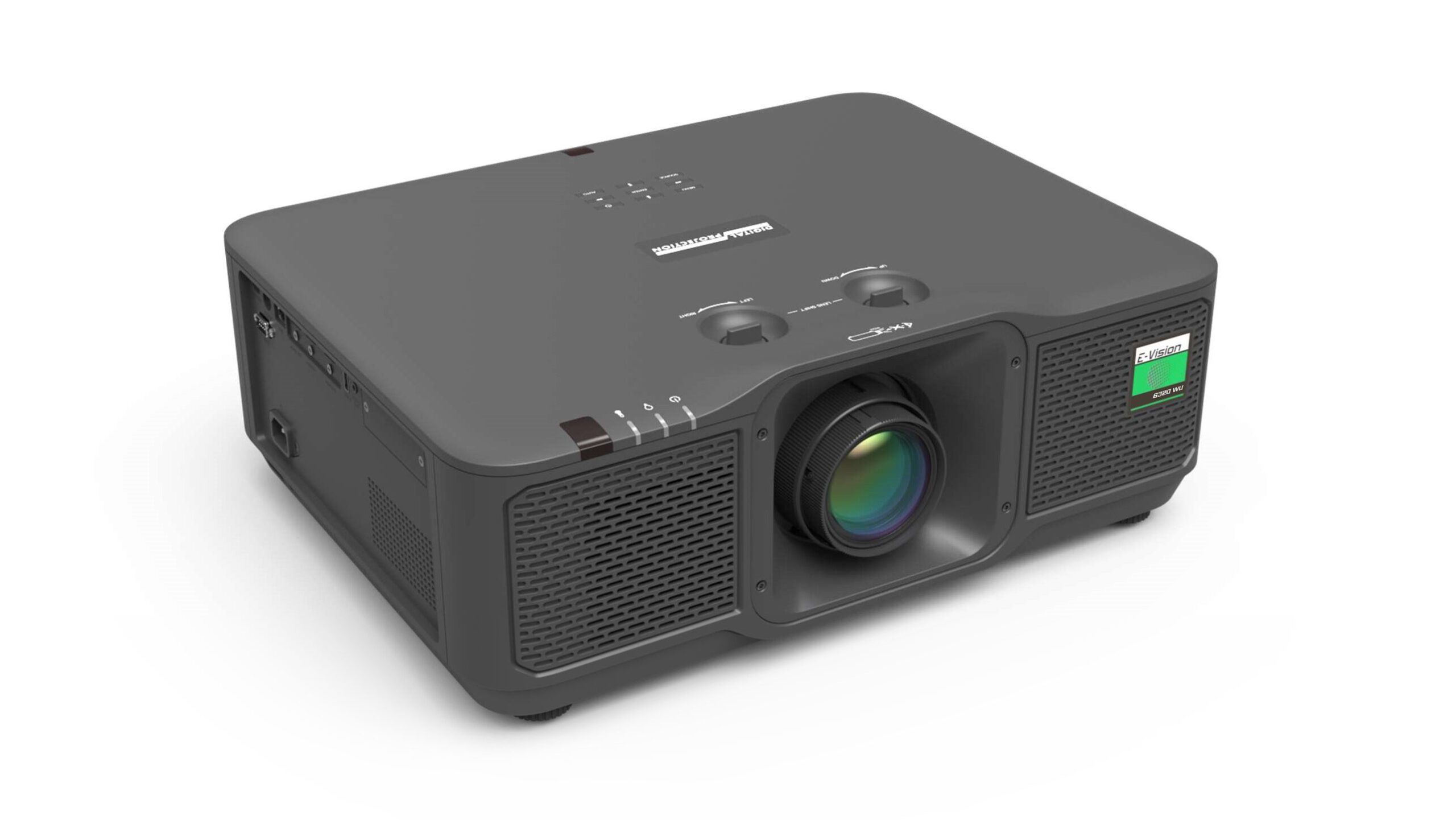

E-Vision 7720 WU

The E-Vision 7720 WU employs Texas Instruments’ 0.65″ DarkChip DMD with fast-transit pixels and Smooth Picture technology, putting 8.3 million pixels on screen for crisp WUXGA imagery with smoother greyscale and improved native contrast. Its laser-phosphor light engine with colour wheel delivers up to 7,500 ISO / 6,700 ANSI lumens and long-life stability, while Dynamic Black elevates on-screen depth to a 3,000,000:1 dynamic contrast ratio. HDR processing, Dual-Pipe/Frame-Sequential 3D, and a versatile I/O suite—DisplayPort 1.2, dual HDMI 2.0, dual HDMI 1.4b, HDBaseT (100 m) and 3G-SDI—make it a flexible, single-chip DLP workhorse for venues that demand both brightness and precision.

Key Features

7,700 ISO / 6,700 ANSI Lumens

0.65″ DarkChip™ DMD™

WUXGA Resolution

3,000,000:1 Dynamic Contrast

Sealed Optics

Part Number: 124-449

E-Vision 7720 WU Spec Sheet

Download

Downloads

E-Vision 7720 WU, Part Number: 124-449

Download

E-Vision 7720 WU

7700 Lumens
30,000 Hours Illumination
0.65″ DarkChip™ DMD™
MultiAxis Orientation

Core Technologies

IP6x Sealed Optics

The optical system, from the laser light source up to the lens is completely sealed is IP6x rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.

More about IP6x sealed optics

Dust-proof, IP6x M-Vision laser projector

Core Technologies

Highlighting innovative imaging technologies, focusing on advanced laser projection systems that deliver outstanding visual performance for professional and entertainment uses.

View all our technological solutions

24/7 operation

The E-Vision 7720 WU boasts stable 24/7 operation via efficient heat dissipation and excellent thermal conductivity ensures peak-performance and reliability

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you

Send us a message

Name *

First

Last

Email Address *

Phone *

Company Name *

Country *

Message *

By submitting this form you agree to Digital Projection storing your data for the purposes of responding to your enquiry.

I understand and agree to Digital Projection’s Privacy Policy

MultiAxis Orientation

For maximum flexibility, all E-Vision 7720 WU Laser projector can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

Constant Brightness

The E-Vision 7720 WU has an Internal light sensor which keeps constant brightness output when initially operated at lower power

24/7 Operation

Intelligent thermal design ensures stable 24 x 7 operation through efficient heat dissipation and excellent thermal conductivity.

5 year / 20,000 hour warranty in EMEA

Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 5 years / 20,000 hours warranty.
