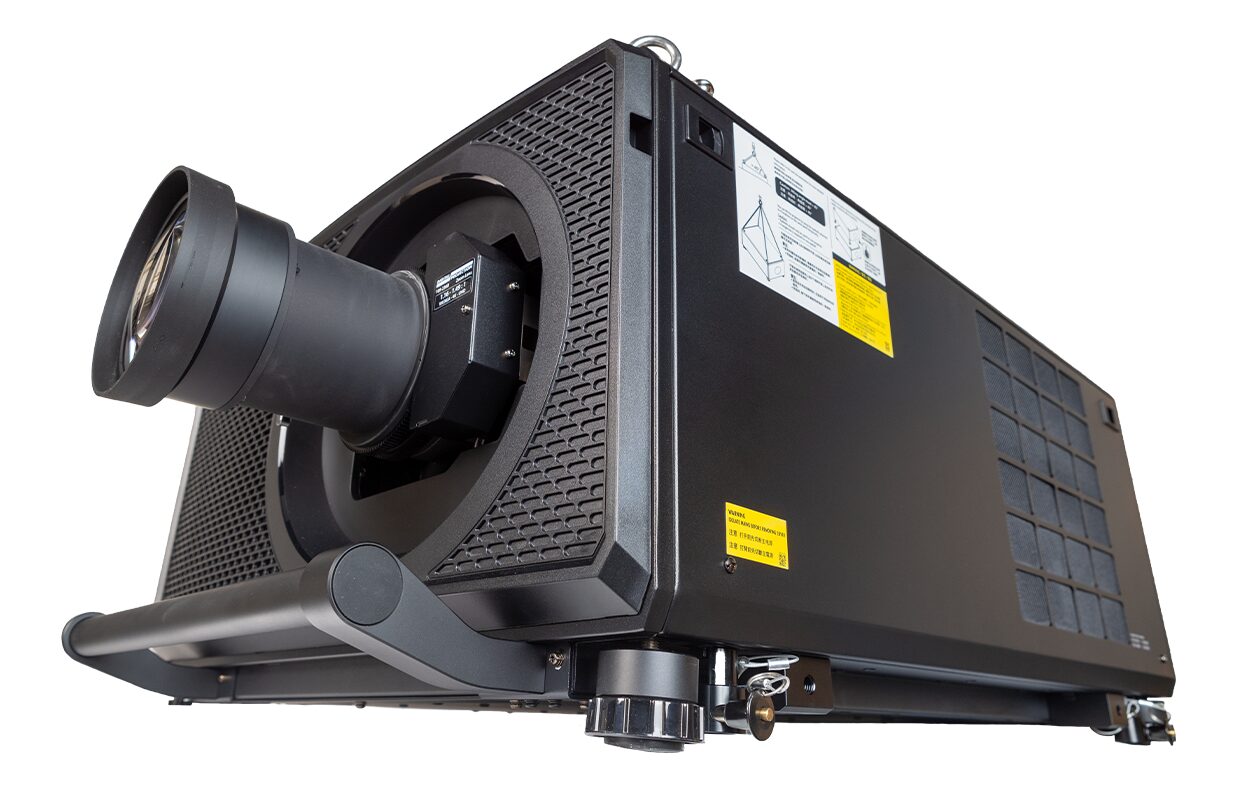

Digital Projection’s state-of-the-art TITAN Laser builds on its legacy of innovation with this exceptional new model
Built into the new TITAN projector chassis’ are several leading-edge technologies that make it a choice imaging solution for higher-end large venue applications, such as auditoria, performing arts centres, visitor attraction venues, houses of worship, and rental and staging.
The new TITAN family is a huge leap forward over the popular current models, with many aspects completely reimagined and redesigned for efficiency and size. The new model is 15% more efficient when measuring the lumens-per-watt output than the current TITAN and better than the closest competitor, firmly putting down the TITAN’s green credentials alongside its already legendary status as a projection powerhouse. Add to this the extended 40,000 hours illumination lifetime in ECO mode and the dust-proof, filterless design, the TITAN is designed to run and run with minimal fuss in 24/7 environments.
The extra power and capability have also been engineered into a much more compact chassis, meaning it is 27% brighter, 13.3% smaller, 7.4% lighter and 3dBA quieter than the current model. This regains the TITAN’s position as the Smallest, Lightest, Brightest and Quietest projector in its class.
Key Features
- Up to 47,000 Lumens
- 4K-UHD & WUXGA Resolution
- 18,000:1 Contrast
- Sealed Optics
Projector Central “Best of Show” award, InfoComm 2023
| Titan Laser 47000 WU | Titan Laser 41000 4K-UHD | |
| Resolution | WUXGA | 4K-UHD |
| Light Output | 47,000 | 41,000 |
| Contrast | 18,000:1 | 18,000:1 |
| Weight | 88 kg | 88 kg |
| Dimensions | L: 840mm, W: 650mm, H: 381mm (Excl handles) | L: 840mm, W: 650mm, H: 381mm (Excl handles) |
| Lenses | 0.37:1 (Right Angled) 0.65-0.85:1 (Right Angled) 0.8-1.16:1 (Includes support bracket) 0.67:1 fixed HB 1.12:1 (short) fixed HB 1.16 – 1.49:1 zoom HB 1.39 – 1.87:1 zoom HB 1.87 – 2.56:1 zoom HB 2.56 – 4.16:1 zoom HB 4.16 – 6.96:1 zoom HB 6.92 – 10.36:1 zoom HB | 0.37:1 (Right Angled) 0.65-0.85:1 (Right Angled) 0.8-1.16:1 (Includes support bracket) 1.16 – 1.49:1 zoom HB 1.39 – 1.87:1 zoom HB 1.87 – 2.56:1 zoom HB 2.56 – 4.16:1 zoom HB 4.16 – 6.96:1 zoom HB 6.92 – 10.36:1 zoom HB |
| View Spec Sheet | View Spec Sheet |
Core Technologies
Our Next Generation Electronics Platform
Our Next-generation electronics platform has been designed to deliver the most advanced image processing to all projectors. Whichever of our projectors you use, you will be totally familiar with its operation, OSD menu structure and functionality, all of which is seamlessly integrated into our free, Projector Control II software.
The optical system, from the laser light source up to the lens is completely sealed is IP6x rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.
The new TITAN laser projector’s built-in Red Laser technology brings the most realistic and saturated colors to this 3-Chip DLP Projector.
Source redundancy offers peace of mind for those critical live events. When the main signal is lost, the projector will switch to the backup source to automatically
Intuitive adjustment which can be adjusted via PC tool or Remote Controller with a grid on-screen which is synchronized with PC tool
Stage controller with Art-Net can directly control the projector (power on/off/brightness adjustment) by network without the need for any DMX to-Net Converter
Intelligent Lens Position Memory which can quickly reset the lens position defined by the user including focus, zoom and lens shift
Stable 24/7 operation via efficient heat dissipation and excellent thermal conductivity ensures peak-performance and reliability
Quickly and easily bore-sight the projector lens without the need to disassemble the projector
Intuitive stacking mechanisms means that TITAN projectors can be lock-stacked without any additional rigging frames or expense.
Request More Info
Source Redundancy
Features such as source redundancy offers peace of mind for those critical live events. When the main signal is lost, the projector will switch to the backup source to automatically
MultiAxis Orientation
For maximum flexibility, all TITAN Laser projectors can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between
Constant Brightness
Internal light sensor keeps constant brightness output when initially operated at lower power
24×7 Operation
Stable 24 x 7 operation through efficient heat dissipation and excellent thermal conductivity
5 Year / 20,00 hour warranty in EMEA
Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 5 years / 20,000 hours warranty.
Built-in Edge Blending
Superbly capable edge blending and multi-projector tiling is provided by way of high bit depth processing that ensures a seamless, contiguous image can be created from multiple projectors.
