M-Vision 23000 WU

Exceptionally powerful 1-DLP Laser Projectors

Jump To

M-Vision 23000 WU

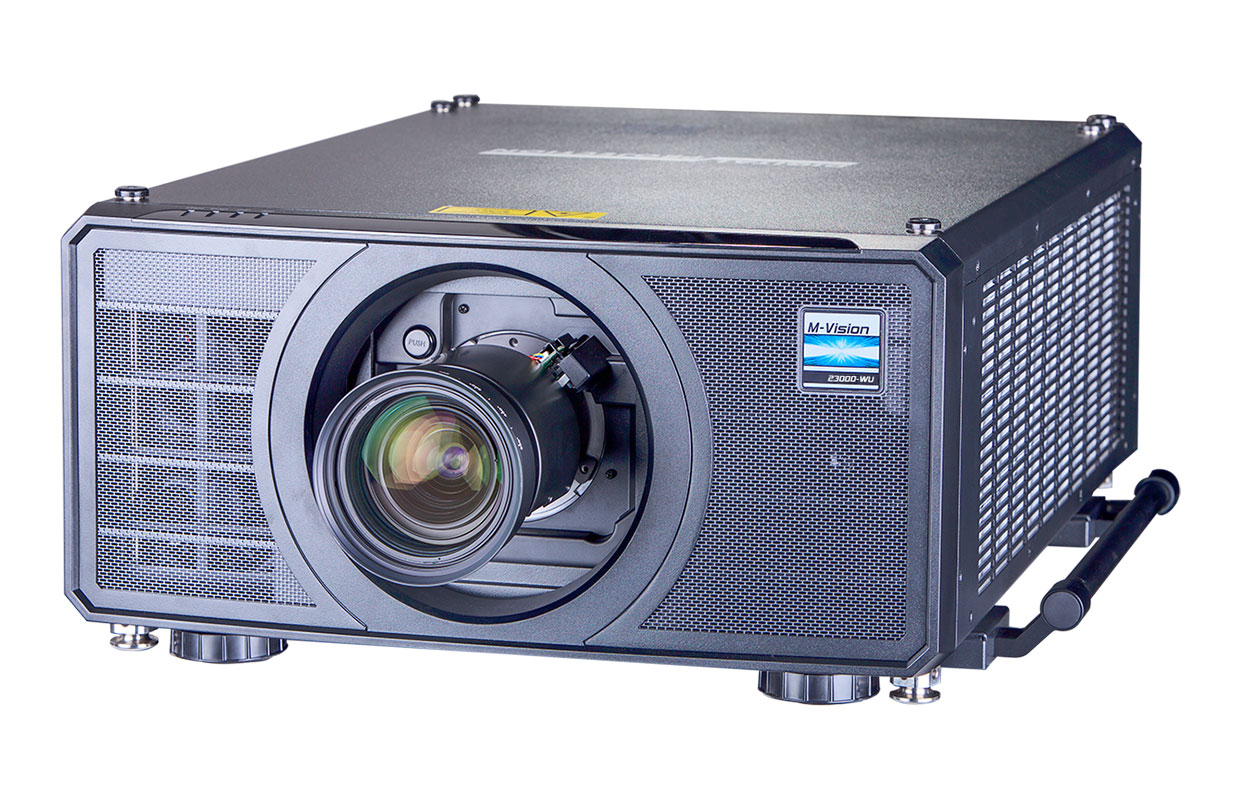

The Digital Projection M-Vision 23000 WU boasts an unprecedented 23,000 lumens output and 10,000:1 contrast ratio, to bring budget-sensitive applications a large-screen imaging solution and near 3-Chip performance at a 1-Chip price point.

The new lamp-free, laser-phosphor projector is charged with ColorBoost + Red Laser technology to provide the most realistic and saturated colours at previously unreachable luminance levels. Venues needing powerful, yet budget-conscious, large-format imagery without sacrificing colour accuracy, as well as those contending with ambient light, will directly benefit from the M-Vision 23000’s market leading light output, contrast ratio and colourimetry. Its DisplayPort accepts frame rates up to 60 Hz and HDMI 1.4b for Side by Side, Frame Packing & Top Bottom 3D formats. Motorised shift, zoom and focus across the whole lens range offer extra flexibility and ease of setup.

The optical system, from the laser light source up to the lens is completely sealed and can be considered IP60 rated. This ensures that light output and colour performance will not be degraded due to the ingress of dust. Additionally, this projector is completely filterless as the system is liquid cooled and uses a radiator heat exchanger, minimising maintenance as no replacement or cleaning of filters is necessary and allows unrestricted airflow.

The 0.96” DarkChip DMD, teamed with blue and red lasers and a four-segment colour wheel produce unrivalled image quality and brightness in the single chip projector market.

M-Vision 23000 WU
M-Vision 23000 WU
M-Vision 23000 WU
M-Vision 23000 WU

Key Features

  • 23,000 ISO / 20,500 ANSI Lumens
  • WUXGA Resolution
  • 10,000:1 Dynamic Contrast
  • ColorBoost + Red Laser Technology
  • Sealed Optics
  • Part Number: 121-679

Spec Sheet

Download download View PDF view

Downloads

M-Vision 23000 WU
Download download View PDF download
M-Vision 23000 WU
  • 23,000 Lumens
  • 20,000 Hours Illumination
  • 0.96″ DarkChip™ DMD™
  • MultiAxis Orientation

Core Technologies

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you

By submitting this form you agree to Digital Projection storing your data for the purposes of responding to your enquiry.

Smart Stack System

SmartStack System

  • The intuitive stacking mechanisms means that M-Vision 23000 projectors can be lock-stacked without any additional rigging frames or expense.

Projector Control Software

Projector Controller

  • Ideal for use in large installations or where projectors are in multiple locations in a building, the software can dramatically reduce the time required for set up and configuration – all from a single network enabled PC.

MultiAxis Projector Orientation

MultiAxis Orientation

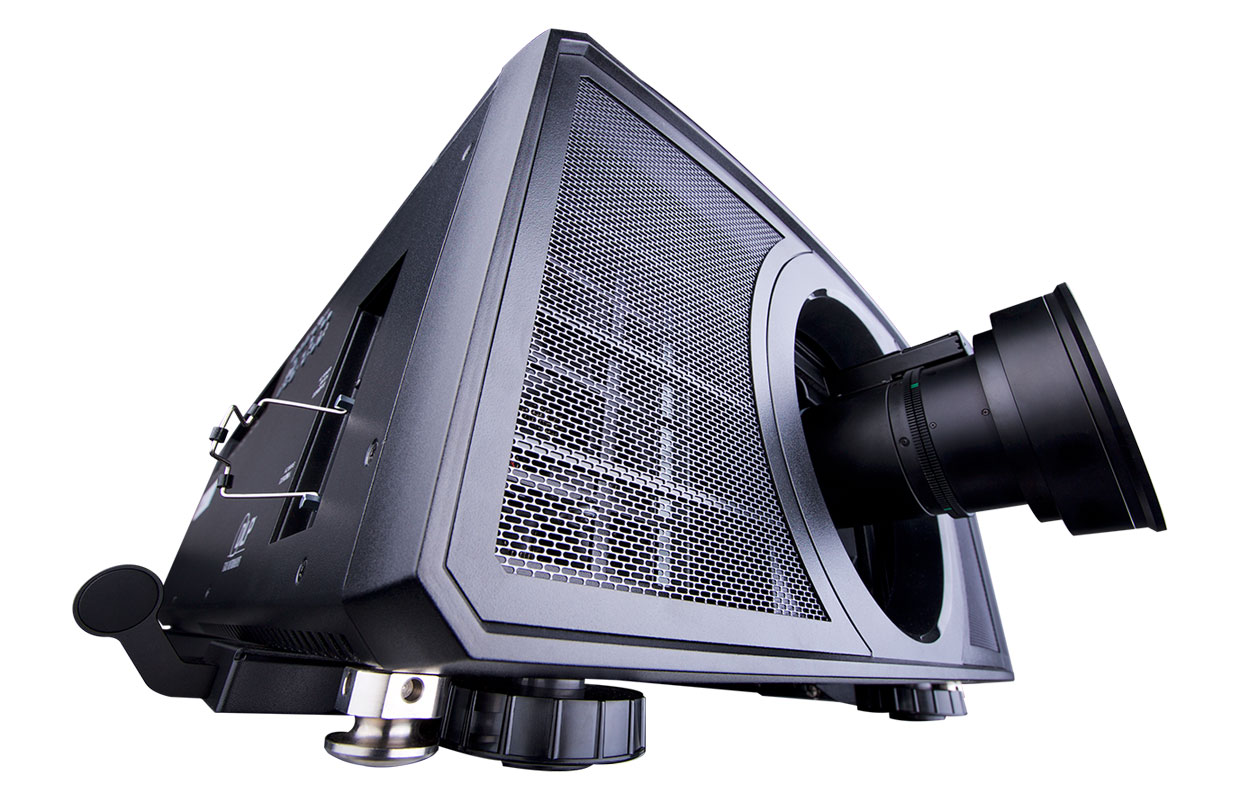

  • For maximum flexibility, the M-Vision 23000 can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

3 Year Warranty

  • Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 3 years / 20,000 hours warranty.

TAA compliant symbol

TAA Compliant

  • Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions.  Toward that end, we are pleased to announce that most of our award-winning laser projectors are now TAA compliant.  We are confident that this will provide more choices and options for those wanting the very best in projection technology.
