TITAN Laser WUXGA / 4K-UHD

Flagship 3-Chip DLP laser projectors up to 37,000 Lumens

Jump To

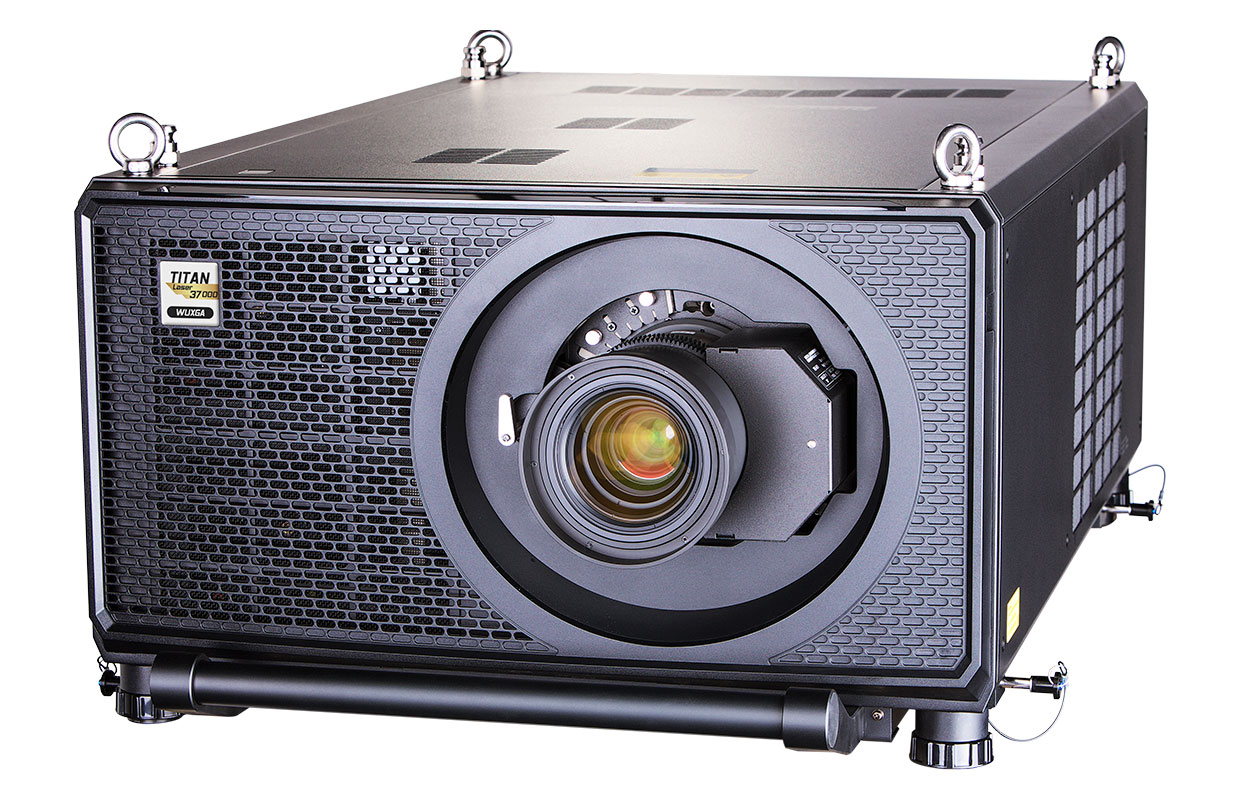

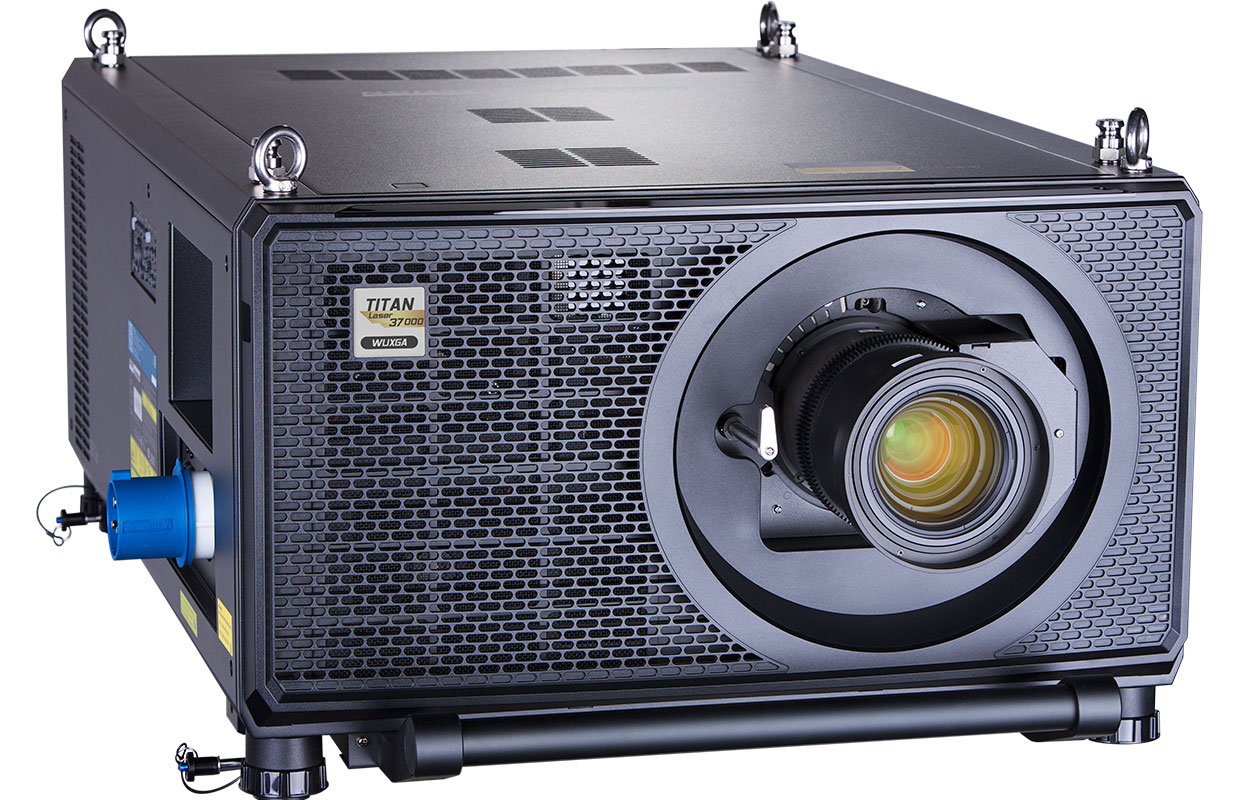

TITAN Laser – A Legend is Reborn! Unbelievably bright and powerful 3-Chip Laser Projector delivering with a surprisingly affordable price tag

The Titan Laser 37000 delivers up to 37,000 (WUXGA) or up to 31,000 (4K-UHD) Lumens from a relatively compact chassis, making it the ideal projector for the most demanding of large-venue applications. Where bright, pin sharp images are required there should be no compromise.

This class-leading 3-Chip DLP projector utilises the very latest in connectivity, including DisplayPort, HDMI 2.0 and HDBaseT. The advanced electronics also bring HDR processing to the large venue class of projectors, and features such as Constant Brightness Control and DMX Art-Net compatibility make it the idea solution for high profile events and fixed installations.

As would be expected for a projector in this class, the TITAN Laser comes with features such as Non-linear Warp, Geometry Correction, Edge Blending, Picture in Picture and much more as standard.

Users of the TITAN Laser in live environments will also benefit from the real time clock for on/off automation; email alerts and PC based central control software. An optional lens adaptor allows a variety of non-Digital Projection lenses to be used with the TITAN, thus overcoming the penalty of investment in new glass when upgrading to the latest projection technology

TITAN Laser WUXGA / 4K-UHD
TITAN Laser WUXGA / 4K-UHD
TITAN Laser WUXGA / 4K-UHD
TITAN Laser WUXGA / 4K-UHD

Key Features

  • Up to 37,000 Lumens
  • 4K-UHD & WUXGA Resolution
  • 18,000:1 Contrast
  • Sealed Optics
Titan Laser 37000 WU Titan Laser 33000 4K-UHDTitan Laser 29000 WU Titan Laser 26000 4K-UHD
ResolutionWUXGA4K-UHDWUXGA4K-UHD
Light Output37,00031,00029,00025,000
Contrast18,000:118,000:118,000:118,000:1
Weight95 kg95 kg95 kg95 kg
DimensionsL: 969.3mm, W: 650mm, H: 397.3mm (Excl handles) L: 969.3mm, W: 650mm, H: 397.3mm (Excl handles)L: 969.3mm, W: 650mm, H: 397.3mm (Excl handles)L: 969.3mm, W: 650mm, H: 397.3mm (Excl handles)
Lenses0.37:1 (Right Angled)
0.65-0.85:1 (Right Angled)
0.8-1.16:1 (Includes support bracket)
0.67:1 fixed HB
1.12:1 (short) fixed HB
1.16 – 1.49:1 zoom HB
1.39 – 1.87:1 zoom HB
1.87 – 2.56:1 zoom HB
2.56 – 4.16:1 zoom HB
4.16 – 6.96:1 zoom HB
6.92 – 10.36:1 zoom HB
0.37:1 (Right Angled)
0.65-0.85:1 (Right Angled)
0.8-1.16:1 (Includes support bracket)
1.16 – 1.49:1 zoom HB
1.39 – 1.87:1 zoom HB
1.87 – 2.56:1 zoom HB
2.56 – 4.16:1 zoom HB
4.16 – 6.96:1 zoom HB
6.92 – 10.36:1 zoom HB
0.37:1 (Right Angled)
0.65-0.85:1 (Right Angled)
0.8-1.16:1 (Includes support bracket)
0.67:1 fixed HB
1.12:1 (short) fixed HB
1.16 – 1.49:1 zoom HB
1.39 – 1.87:1 zoom HB
1.87 – 2.56:1 zoom HB
2.56 – 4.16:1 zoom HB
4.16 – 6.96:1 zoom HB
6.92 – 10.36:1 zoom HB
0.37:1 (Right Angled)
0.65-0.85:1 (Right Angled)
0.8-1.16:1 (Includes support bracket)
1.16 – 1.49:1 zoom HB
1.39 – 1.87:1 zoom HB
1.87 – 2.56:1 zoom HB
2.56 – 4.16:1 zoom HB
4.16 – 6.96:1 zoom HB
6.92 – 10.36:1 zoom HB
Part Number120-613120-612122-212122-213
View Spec Sheet View Spec Sheet View Spec Sheet View Spec Sheet

Core Technologies

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you

By submitting this form you agree to Digital Projection storing your data for the purposes of responding to your enquiry.

Smart Stack System

SmartStack System

  • The intuitive stacking mechanisms means that TITAN Laser projectors can be lock-stacked without any additional rigging frames or expense.

Projector Control Software

Projector Controller

  • Ideal for use in large installations or where projectors are in multiple locations in a building, the software can dramatically reduce the time required for set up and configuration – all from a single network enabled PC.

MultiAxis Projector Orientation

MultiAxis Orientation

  • For maximum flexibility, all TITAN Laser projectors can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

3 Year Warranty

  • Due to the proven reliability and long-term performance of our laser projectors, Digital Projection provides a full 3 years / 20,000 hours warranty.

TAA compliant symbol

TAA Compliant

  • Digital Projection is always pushing to innovate and improve the quality of our remarkable visual solutions.  Toward that end, we are pleased to announce that most of our award-winning laser projectors are now TAA compliant.  We are confident that this will provide more choices and options for those wanting the very best in projection technology.
