TITAN Laser 47000 WUXGA / 41000 4K-UHD

TITAN Laser – A Legend is Reborn! Unbelievably bright and powerful 3-Chip Laser Projectors

Jump To

Digital Projection’s state-of-the-art TITAN Laser builds on its legacy of innovation with this exceptional new model

Built into the new TITAN projector chassis’ are several leading-edge technologies that make it a choice imaging solution for higher-end large venue applications, such as auditoria, performing arts centres, visitor attraction venues, houses of worship, and rental and staging.

The new TITAN family is a huge leap forward over the popular current models, with many aspects completely reimagined and redesigned for efficiency and size. The new model is 15% more efficient when measuring the lumens-per-watt output than the current TITAN and better than the closest competitor, firmly putting down the TITAN’s green credentials alongside its already legendary status as a projection powerhouse. Add to this the extended 40,000 hours illumination lifetime in ECO mode and the dust-proof, filterless design, the TITAN is designed to run and run with minimal fuss in 24/7 environments.

The extra power and capability have also been engineered into a much more compact chassis, meaning it is 27% brighter, 13.3% smaller, 7.4% lighter and 3dBA quieter than the current model. This regains the TITAN’s position as the Smallest, Lightest, Brightest and Quietest projector in its class.

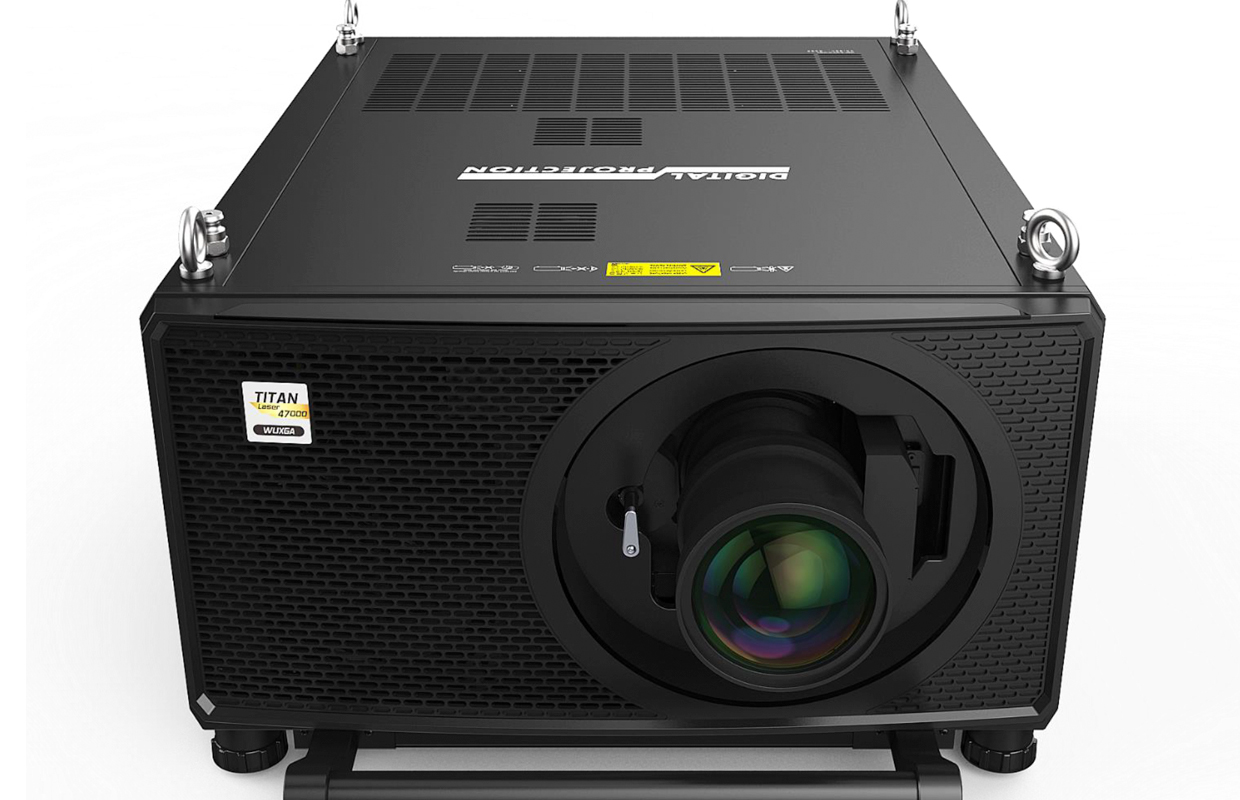

TITAN Laser 47000 WUXGA / 41000 4K-UHD

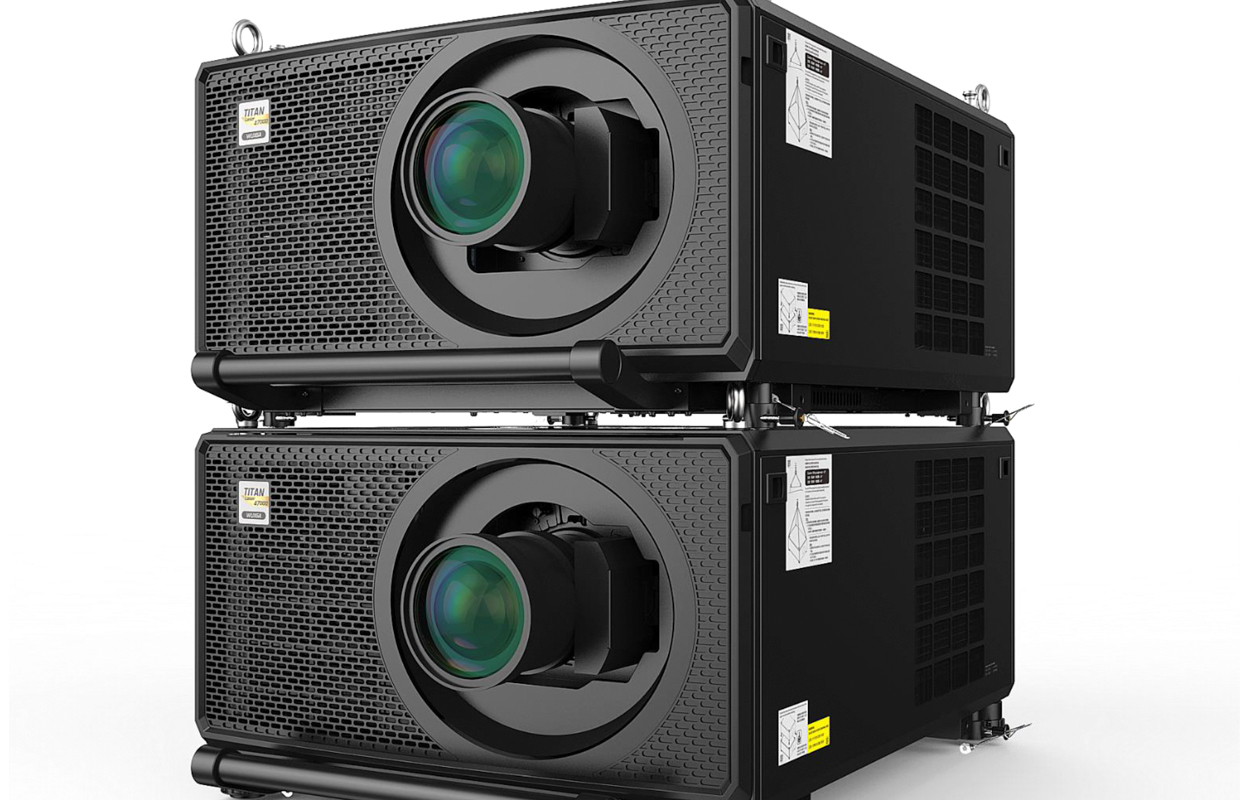

TITAN Laser 47000 WUXGA / 41000 4K-UHD

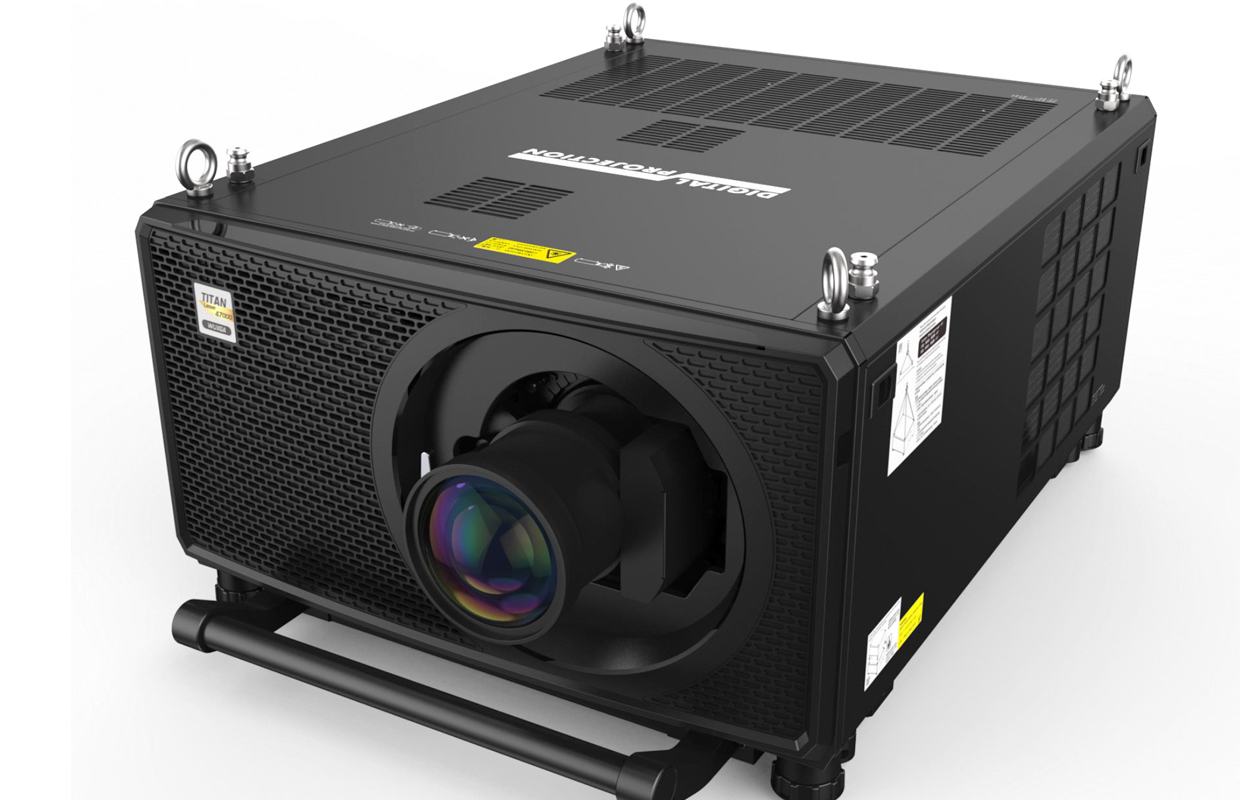

TITAN Laser 47000 WUXGA / 41000 4K-UHD

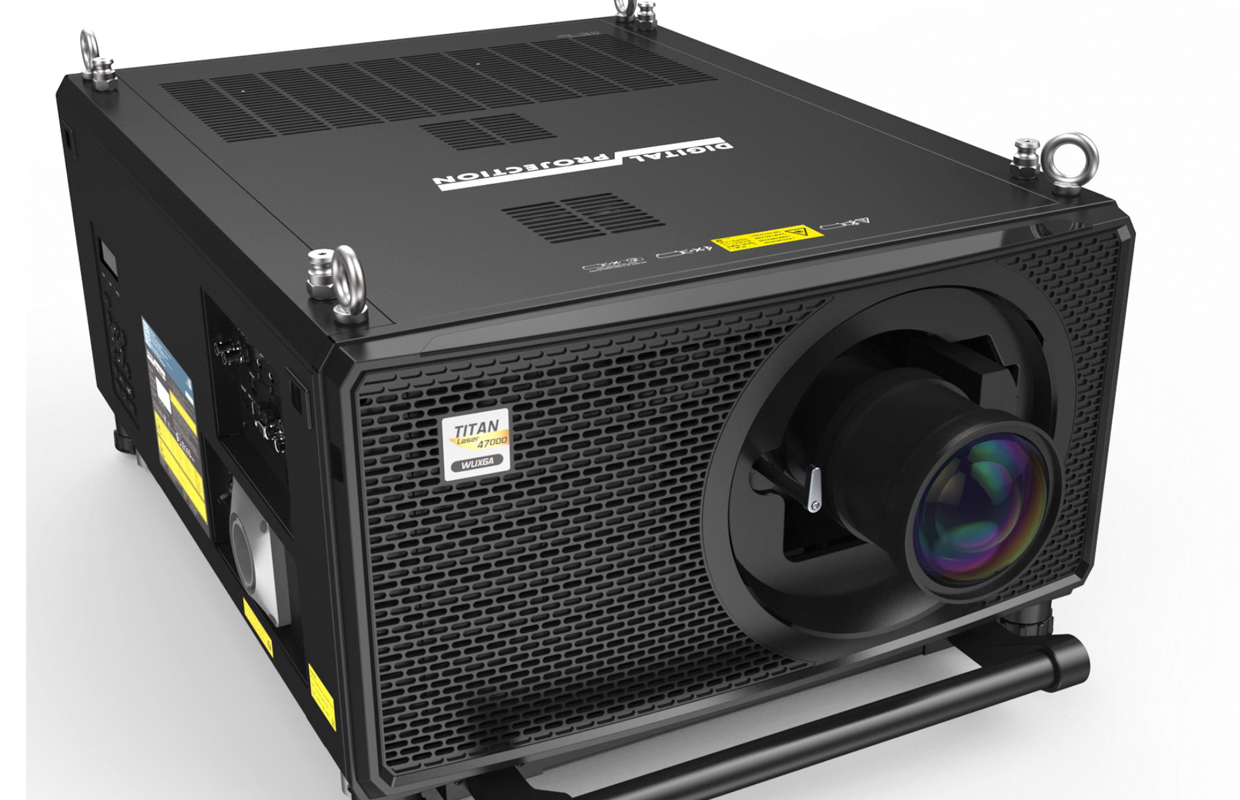

TITAN Laser 47000 WUXGA / 41000 4K-UHD

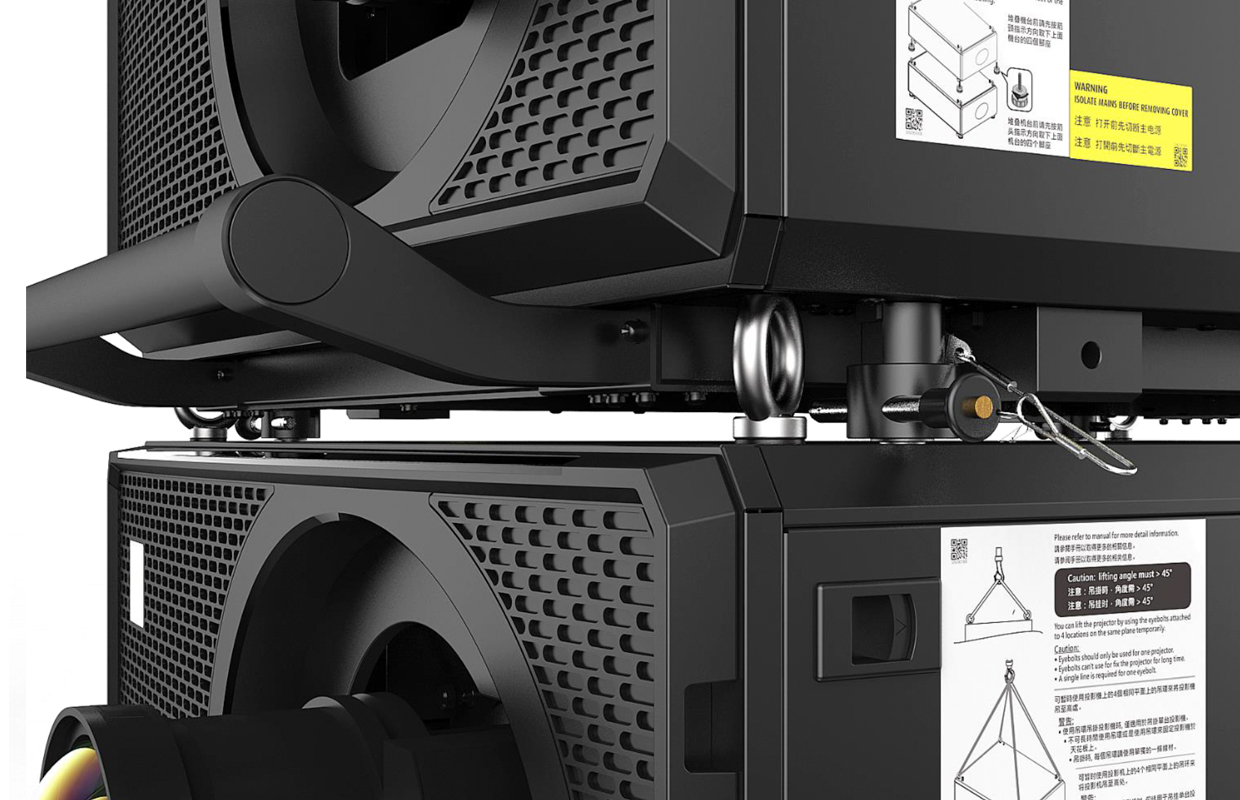

TITAN Laser 47000 WUXGA / 41000 4K-UHD

Key Features

  • Up to 47,000 Lumens
  • 4K-UHD & WUXGA Resolution
  • 18,000:1 Contrast
  • Sealed Optics
Titan Laser 47000 WU Titan Laser 41000 4K-UHD
ResolutionWUXGA4K-UHD
Light Output47,00041,000
Contrast18,000:118,000:1
Weight88 kg88 kg
DimensionsL: 840mm, W: 650mm, H: 381mm (Excl handles)L: 840mm, W: 650mm, H: 381mm (Excl handles)
Lenses0.37:1 (Right Angled)
0.65-0.85:1 (Right Angled)
0.8-1.16:1 (Includes support bracket)
0.67:1 fixed HB
1.12:1 (short) fixed HB
1.16 – 1.49:1 zoom HB
1.39 – 1.87:1 zoom HB
1.87 – 2.56:1 zoom HB
2.56 – 4.16:1 zoom HB
4.16 – 6.96:1 zoom HB
6.92 – 10.36:1 zoom HB
0.37:1 (Right Angled)
0.65-0.85:1 (Right Angled)
0.8-1.16:1 (Includes support bracket)
1.16 – 1.49:1 zoom HB
1.39 – 1.87:1 zoom HB
1.87 – 2.56:1 zoom HB
2.56 – 4.16:1 zoom HB
4.16 – 6.96:1 zoom HB
6.92 – 10.36:1 zoom HB
View Spec Sheet View Spec Sheet

Core Technologies

Technical Specifications

Download download View PDF download
TITAN Laser 47000 WUXGA / 41000 4K-UHD
  • Up to 47,000 Lumens
  • 4K-UHD & WUXGA Resolution
  • 20,000 Hours Illumination
  • MultiAxis Orientation

Request More Info

If you need more information or a call back from our team, please fill in the form below and your local business development manager will get back to you

By submitting this form you agree to Digital Projection storing your data for the purposes of responding to your enquiry.

Source Redundancy

  • Features such as source redundancy offers peace of mind for those critical live events. When the main signal is lost, the projector will switch to the backup source to automatically

360 orientation

MultiAxis Orientation

  • For maximum flexibility, all TITAN Laser projectors can be operated in both Portrait and Landscape mode, pointing up and down and every angle in between

Constant Brightness Projector

Constant Brightness

  • Internal light sensor keeps constant brightness output when initially operated at lower power

24 x 7 Operation Projector

24×7 Operation

  • Stable 24 x 7 operation through efficient heat dissipation and excellent thermal conductivity

Edge-Blended Projector

Built-in Edge Blending

  • Superbly capable edge blending and multi-projector tiling is provided by way of high bit depth processing that ensures a seamless, contiguous image can be created from multiple projectors.

Awards

Year AwardedAwardCategoryProduct / Installation
2023Projector CentralBest of Show – InfoCommTITAN 41000 4K-UHD
2023AV TechnologyBest of Show – InfoCommTITAN 41000 4K-UHD
