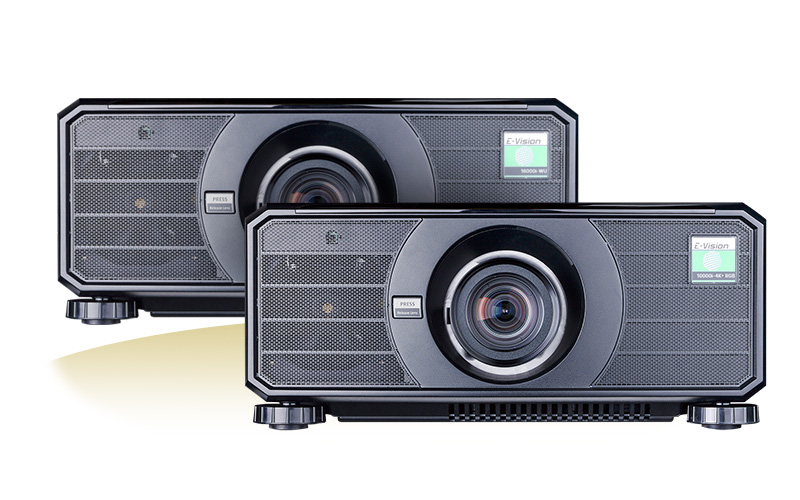

Introducing the new
E-Vision 16000i

Performance. Guaranteed.

DLP® powered projectors have set the standard for rock-solid reliability, and have been the benchmark for image quality since their inception.

The new 0.8” DMD gave us the opportunity to harness all the improvements to advance the thing that you have told us matters the most in 1-Chip DLP® projectors – color!

Amongst other improvements, the DMD has been optimized for the colour red which means when coupled with our Colorboost+Red Laser technology, you get reds that were previously unachievable on a 1-Chip DLP® projector. All these changes means that the colour space far exceeds REC709, making this one of the most powerful 1-Chip DLP projectors on the market today.

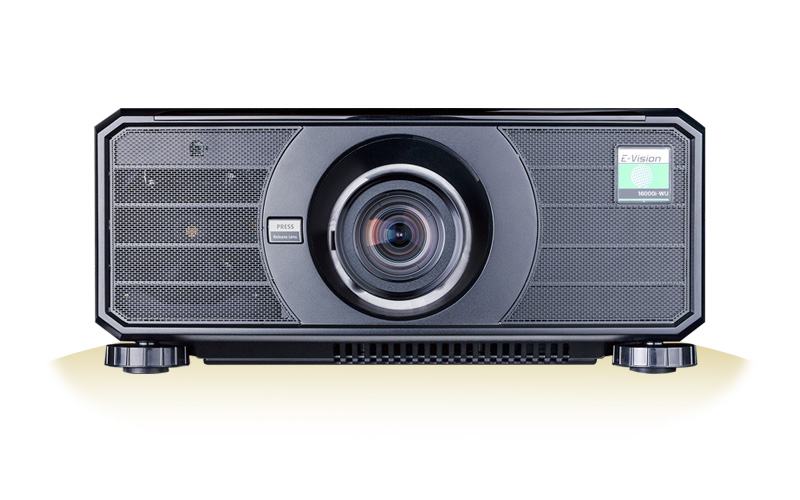

Discover the E-Vision 16000i WU

Reasons Why

Standard
5 Year Warranty

Complete peace of mind.

Click Here

IP6x
Sealed Optics

Extended light output and colour performance.

Click Here

Nexus with Advanced Align

Advanced processing and geometry.

Click Here

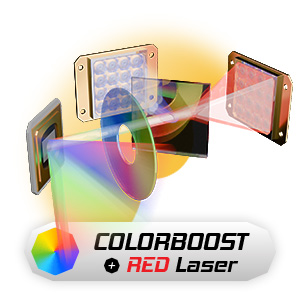

ColorBoost
+ Red Laser

For the widest possible colour gamut.

Click Here

The E-Vision 16000i utilizes Texas Instruments (TI) all new 0.8” HEP DMD, which brings a host of exciting features to elevate your viewing experience. Completely redesigned, the new DMD has an increased tilt angle which gives better efficiency and can be used to increase brightness and contrast. The DMD also features new filled via which also reduces the scattering of light that results in increased native contrast. Amongst other improvements, the DMD has been optimised for the colour red to which means that, when coupled with our Colorboost+Red Laser technology, you get reds that were previously unachievable on a 1-Chip DLP projector. All these changes means that the colour space far exceeds REC709, making this one of the most powerful 1-Chip DLP projectors on the market today.

Specifications

  • Brightness Efficiency

    74%

  • Resolution

    1920×1200

  • Hours of Illumination

    20.000

  • Contrast

    20.000:1

  • Lumens

    16.000

  • Dust Proof

    IP6X

  • DMD Chip

    0.8″ HEP

  • Platform

    Nexus

Major Achievement

The E-Vision 16000i achieves 123% of the REC 709 Colour space and 90% of DCI P3 – all from a 1-Chip DLP projector.

0.8" HEP DMD Improved Contrast

Improved Contrast

Significantly improved contrast with Filled Mirror Via enhances image quality by reducing light leakage, resulting in deeper blacks and more vibrant colors.


0.8" HEP DMD Improved Red Colours

Better Reds and Colours

Providing better reds and wider colour gamut with Improved DMD diffraction efficiency for red LED and red laser.


Pond of Mirrors

Invisible Pond of Mirrors

Easier blending with invisible Pond of Mirrors (POM) – the newly designed POM matches the off-state pixel colour.


74 Percent

More Light In = More Light Out.

A greener option that offers higher lumens output per watt. The 0.8” HEP DMD captures more light with optimized mirrors, achieving 66% to 74% brightness efficiency.

85 Percent

More Efficient

The HEP pixel provides >85% diffraction efficiency for LED, RGB laser and laser-phosphor which allows for more efficient projectors across the DLP markets from 1500lm to >20,000lm projectors.

Etendue

High Etendue

Etendue is the ability of a source to emit light or the ability of an optical system to accept light. The new HEP DMD has a balanced tilt angle and area to achieve high etendue at minimal cost.

HEP optical benefits and improvements:

  • Higher operating margins improve lifetime, reliability, and optical power handling
  • Hermetic package for improved lifetime, high power and humid environments
  • Improved mirror fill factor leads to improved DMD efficiency
  • POM and off state mirrors are now at the same level of contrast for better edge blending
  • Pixel capable of enhanced mirror reflectivity
  • HEP provides opportunity to win on picture quality and colour

Next Steps:

We challenge you to compare the image quality, the colour and contrast of our new 0.8” HEP range against any other technology – the improvements, coupled with the proven reliability and long lifetime of TI’s DLP® technology make these projectors a genuinely huge leap forward in projection technology.
